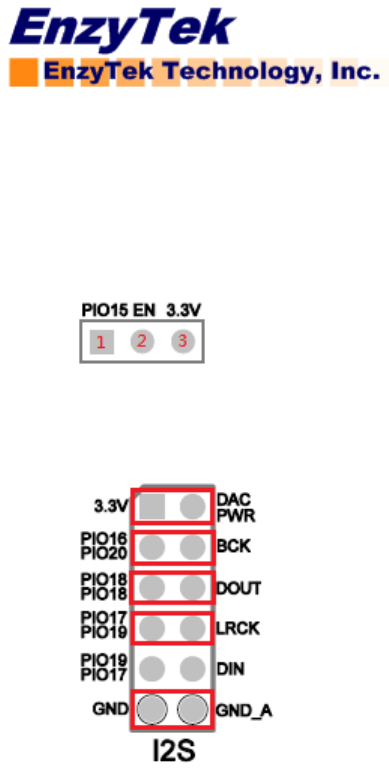

15. AUX OUT
1-2 short: PIO15 enable
2-3 short: 3.3V enable
Header default setting
BCLK=PIO16, DOUT=PIO, DIN=PIO19, LRCK=PIO17
16. TEM EN/Buzzer/AUX_DET/CC/TEM_S
Header default setting
TEM EN=PIO52, LINE IN_DET=PIO60, Buzzer=PIO61, CC_Type C=LED4,
TEM S=LED5
