Oven installation:
The sauna oven is intended only for a supply
voltage of 400 V 3 N AC.
The minimum height of the sauna cabin must
be 1.90m on the inside.
During the installation of the sauna oven,
make certain that the vertical distance bet-
ween the upper edge of the sauna oven and
the sauna ceiling is at least 90 cm, and that
the horizontal (lateral) distance between the
oven and the cabin wall is at least 8 cm.
The distance between the oven safety grid
or recliner bench and other ammable ma-
terials and the oven must be at least 8 cm.

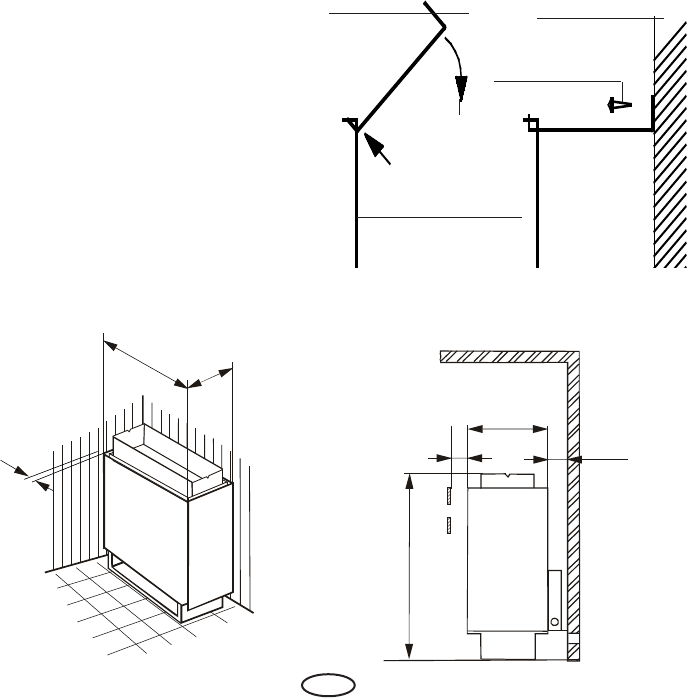

Mounting screw
Angle bracket
Rear wall, sauna oven
Cabin wall
Fig. 1
Fig. 2
Fig. 3 Fig. 4
8 cm
63 cm
30 cm
30 cm
8 cm
72 cm
8 cm
The safety grid height must be equal to the
frontal oven height (fi g. 3 and 4).
In accordance with required safety di-
stances, center the oven in front of the air
intake vents. Insert angle bracket into the
mounting slot on the rear wall in accordance
with the following illustration and swing
into horizontal position. To this end, make
certain the short side of the angle bracket
latches into the upper slot. Tighten the
brackets with the screws for particle board
which are provided.
When used for commercial purposes, the
sauna heater may only be used in com-
bination with the rocker switch Type II Art.
No. 94.4424.
The sauna heater, if used in commercial/
public facilities and equipped with remote
control*, may be used only in combination
with the appropriate cover protection system
or S-Guard system.
*Remote control means settings, switch-
ing, control and adjustment of the sauna
control unit by means of commands trans-
mitted from a remote location beyond sight
distance using telecommunication, wire- or
wireless signal transmission systems, net-
work and similar systems.
