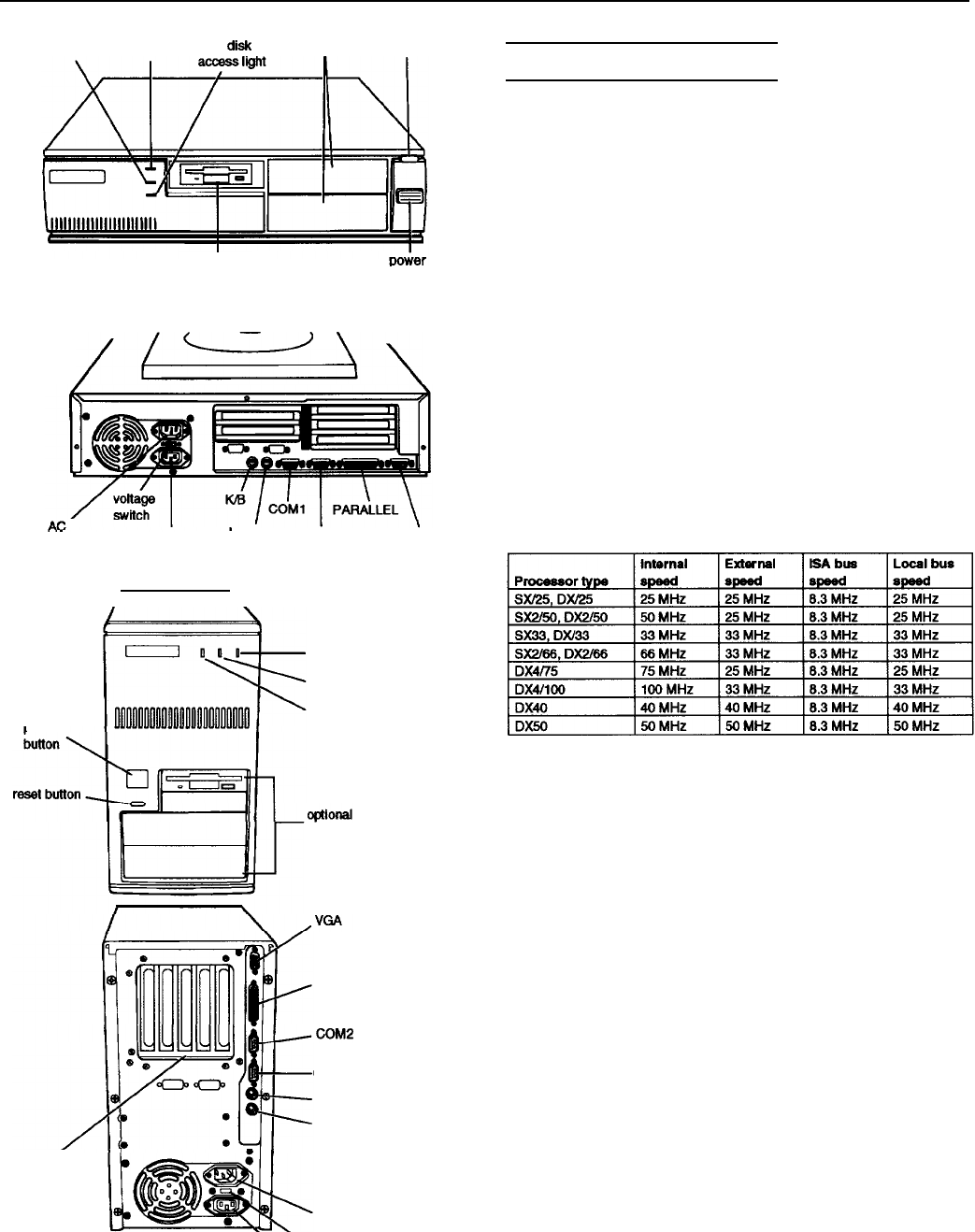

NEW EPSON ActionPC 5000, ActionTower 5000

speed light

power lightpower light

hard

diskhard disk

drive baysdrive bays

reset buttonreset button

diskette drive

button

/-\

inlet

AC outlet

MOUSE

COM2

VGA

power

power light

speed light

hard disk

access light

drive bays

PARALLEL

COM1

MOUSE

AC Inlet

option skits

AC &let\

voltage switch

Computer Specifications

CPU and Memory

32-bit CPU

486SX/25 or /33; SX2/50 or /66;

DX/33, /40, or /50; DX2/50 or /66;

DX4/75 or /100; or Pentium™OverDrive™

processor

Green PC

energy saver

Energy Star compliant, low-power,

standby mode for the hard disk drive and

video signals

sent

by the computer to the

monitor; select timeout periods in SETUP;

in a standard

configuration

of one hard

disk drive and one diskette drive,

system

consumes less than 30 watts in standby

mode

System speed

Fast and slow processor speeds available;

fast is the speed of your processor and

slow is 8 MHz; 0 wait state memory access

at fast speed

Press

Ctrl Alt

and - to select slow speed or

Ctrl Alt

and + to select fast speed

Memory

ROM

Video RAM

Shadow RAM

Memory

relocation

4MB or 8MB RAM standard on a SIMM;

expandable to 64MB using 1MB, 2MB,

4MB, 8MB, 16MB, and 32MB SIMMs;

SIMMs must be tin-plated, 72-pin, 32-bit

or 36-bit, fast-page mode type with an

access speed of 70ns or faster

128KB Phoenix@ system BIOS, video BIOS,

and SETUP program located in EPROM

on main system board

1MB DRAM on main system board;

expandable to 2MB using eight,

4 x 4 x 256, 20-pin DIP chips

Supports shadowing of system and video

BIOS ROM into RAM

Supports relocation of 256KB of memory

from A0000h to BFFFFh and D0000h to

EFFFFh to extended

memory

8/94

NEW EPSON ActionPC 5000, ActionTower 5000 - 1
