Using the Printer Software with Windows 66
EPSON AcuLaser C3800 User's Guide

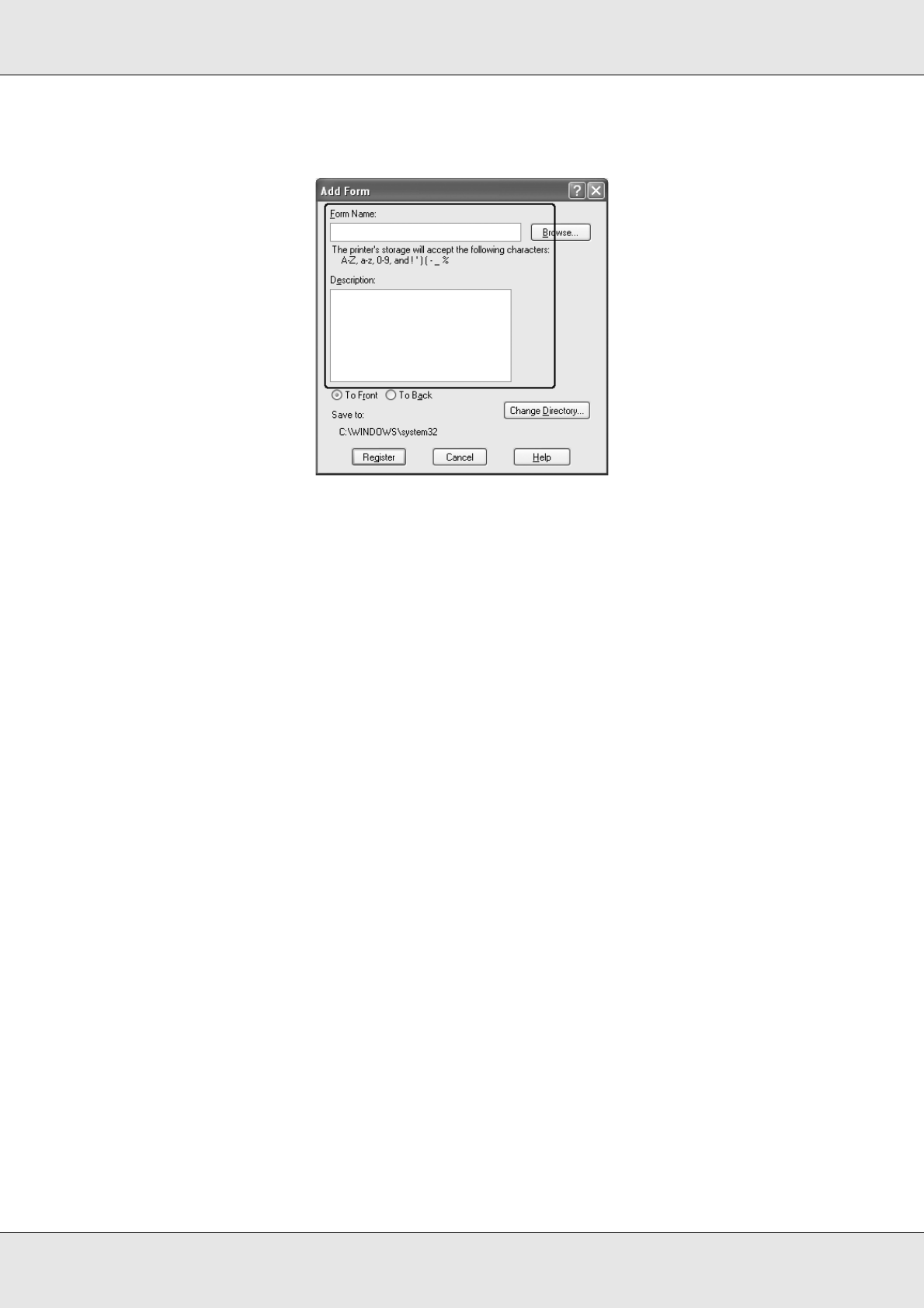

7. Type the form name in the Form Name box and its description in the Description box.
8. Select To Front or To Back to specify whether the overlay will be printed as foreground
or background of the document.
9. Click Register to apply the settings and return to Form settings dialog box.
10.Click OK in the Form Settings dialog box.
11.Click OK in the Overlay Settings dialog box.
12.Print the file saved as overlay data. It is possible to save any kind of file as an overlay.
The overlay data is created.
Printing with an overlay
Follow the steps below to print a document with overlay data.
1. Open the file to print with overlay data.
2. From the application, access the printer driver. Open the File menu, choose Print or
Print Setup, then click Printer, Setup, Options, Properties, or a combination of these
buttons, depending on your application.
3. Click the Advanced Layout tab.
4. Select the Form Overlay check box, and click Overlay Settings to open the Overlay
Settings dialog box.
