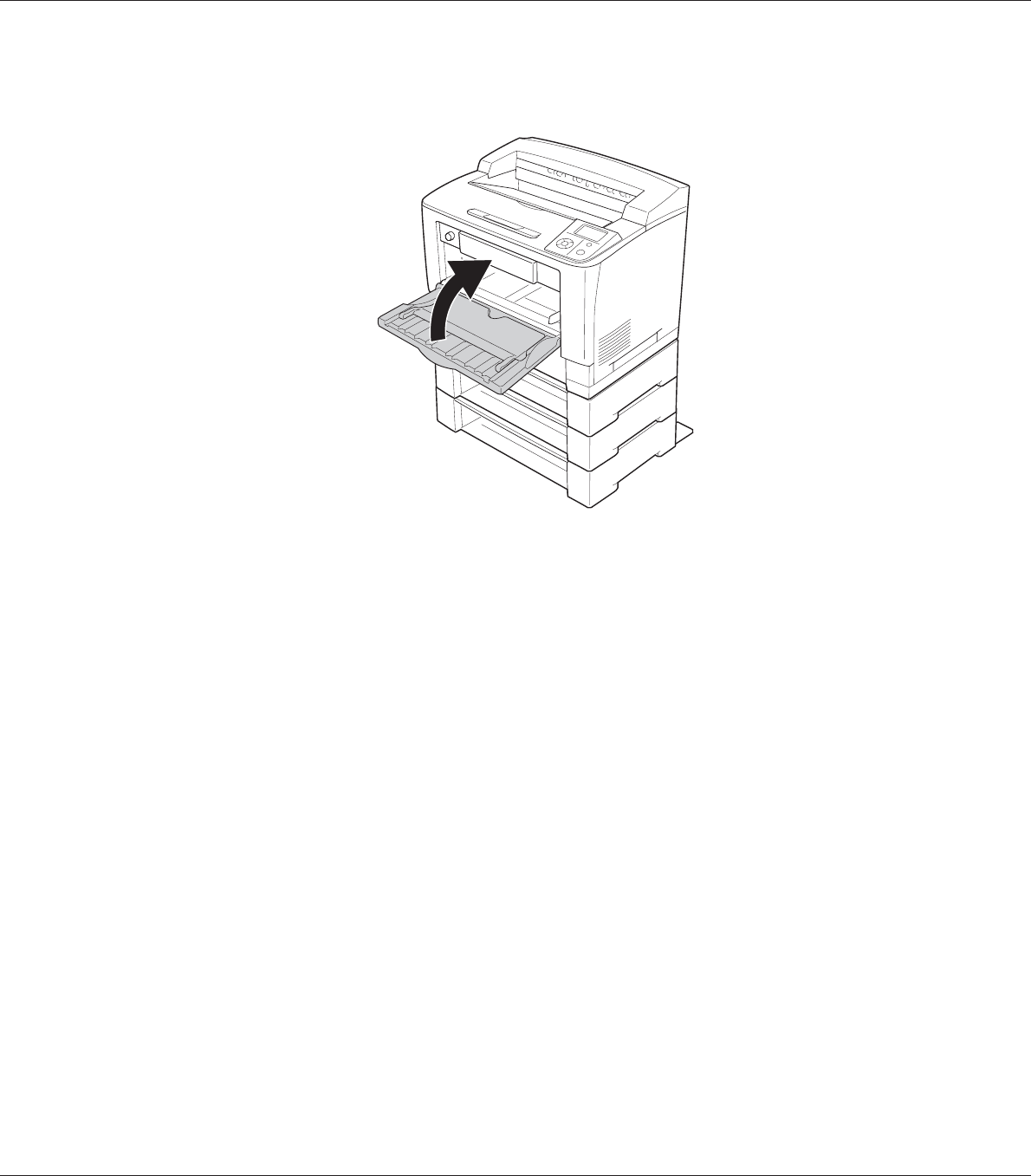

15. Close the MP tray.
16. Remove the protective materials from the optional paper cassettes.
17. Insert all paper cassettes.
18. Reconnect the interface cable and power cord, and then turn the printer on.
To confirm that the option is installed correctly, print a configuration status sheet. See “Printing a
Configuration Status Sheet” on page 184.
Note for Windows users:
If EPSON Status Monitor is not installed, you have to make settings manually in the printer driver.
Click the Update the Printer Option Info Manually button on the Optional Settings tab, and then click
Settings. Then select Cassette 2, Cassette 3, and Cassette 4 from the Optional Paper Sources list on
the Optional Settings dialog box based on the installed options and click OK.
Removing the optional paper cassette unit
Perform the installation procedure in reverse.
EPSON AcuLaser M8000 Series User's Guide
Installing Options 117
