EPSON PowerLite Home 10 Projector

7/03 EPSON PowerLite Home 10 Projector - 1

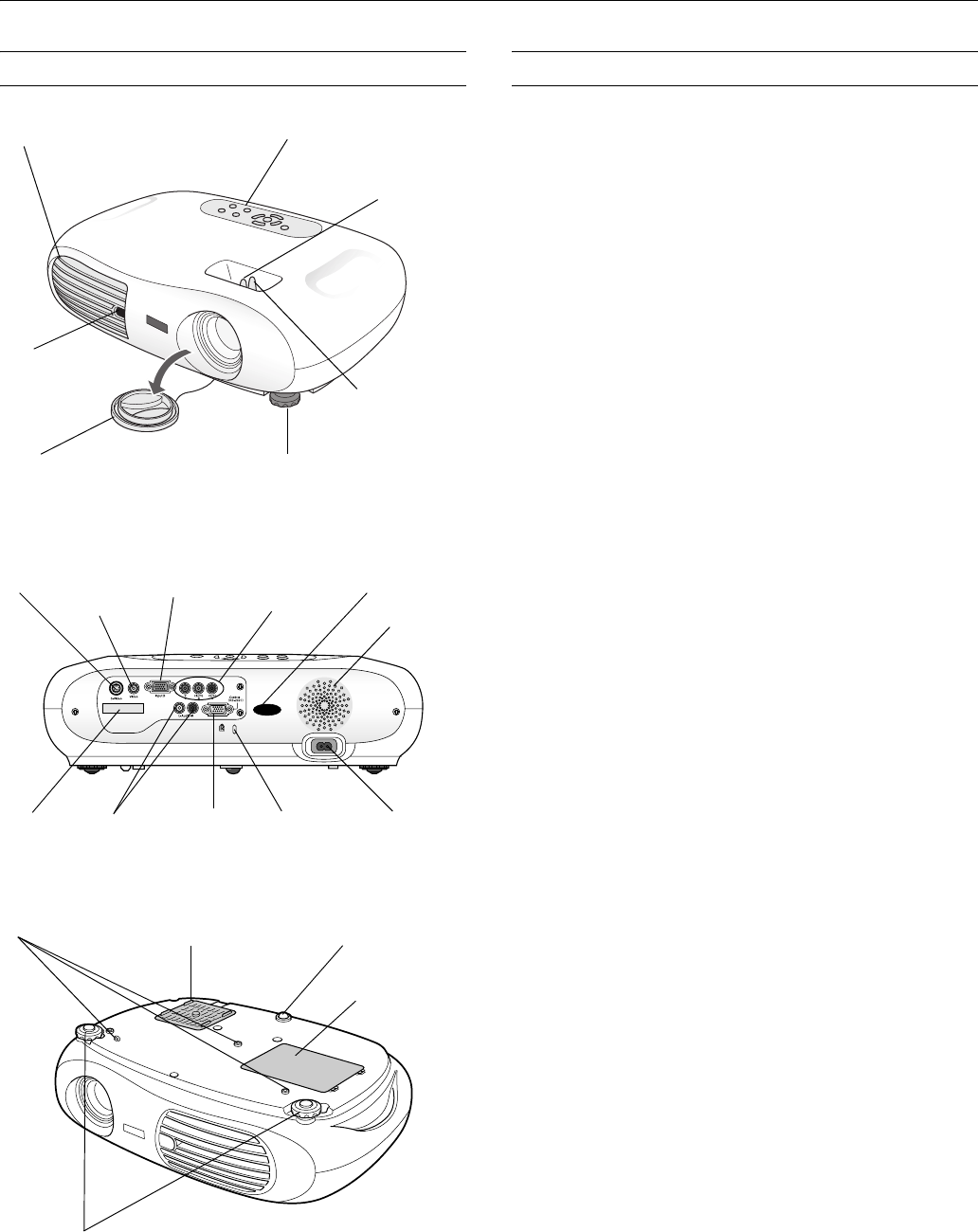

Projector Parts Projector Specifications

General

Type of display Poly-silicon Thin Film Transistor (TFT)

active matrix with Micro Lens Array

Size of LCD panels Diagonal: 0.55 inches (14 mm)

Lens F=1.7 to 2.1 mm, f=13.9 to 21.4 mm

Focus adjustment Manual

Zoom ratio Digital 1.1 to 1.54, lens at maximum size

Resolution 854 × 480 pixels (480p native resolution)

Color

reproduction 24 bit, 16.7 million colors

Brightness 1000 ANSI lumens (Dynamic color

mode)

Contrast ratio 700:1 (Theatre Black color mode)

Image size 30 to 300 inches (0.76 to 7.6 m)

Projection distance Tele: 3.7 to 38 ft (1.1 to 11.6 m)

Wide: 2.4 to 25 ft (0.7 to 7.6 m)

Projection methods Front, rear, upside-down (shelf or ceiling

mount)

Sound output 1W monaural

Optical aspect ratio 16.9

Keystone correction

angle

± 15° vertical

Keystone correction

ratio 9.6:1

Noise level 29 dB (Theatre Black color mode)

32 dB (all other color modes)

Supported video

interface standards HDTV, NTSC, NTSC4.43, PAL,

M-PAL, N-PAL, PAL60, SECAM

Projection Lamp

Type UHE (Ultra High Efficiency)

Power consumption 132W

Lamp life About 3000 hours (Theatre Black

color mode)

About 2000 hours (other color modes)

Part number V13H010L2H

Remote Control

Range 20 feet (6 meters)

Battery Lithium (CR2025)

Control panel

Infrared

receiver

Ventilation slots

Lens Adjustable foot

Focus lever

Zoom lever

Remote

control

holder

Audio ports RS-232 port Security lock

Power

inlet

S-video

port

Video port

(composite

video)

Input B

(computer)

Input A

(component

video)

Infrared

receiver

Speaker

Lamp cover

Air filter intake vent

Ceiling mount holders

Rubber foot

Adjustable feet

Summary of content (12 pages)

PAGE 1
EPSON PowerLite Home 10 Projector Projector Parts Projector Specifications General Control panel Ventilation slots Type of display Poly-silicon Thin Film Transistor (TFT) active matrix with Micro Lens Array Size of LCD panels Diagonal: 0.55 inches (14 mm) Lens F=1.7 to 2.1 mm, f=13.9 to 21.4 mm Focus adjustment Manual Zoom ratio Digital 1.1 to 1.54, lens at maximum size Resolution 854 × 480 pixels (480p native resolution) Color reproduction 24 bit, 16.
PAGE 2
EPSON PowerLite Home 10 Projector Dimensions Computer Height 4.5 inches (114 mm) Width 15.8 inches (402 mm) Depth Weight Signal Refresh Rate (Hz) Resolution Normal Aspect Mode 11.6 inches (294 mm) VGA 60 640 × 480 4:3: 640 × 480 approximately 7.9 lb (3.
PAGE 3
EPSON PowerLite Home 10 Projector Image Size and Projection Distance Positioning the Projector The distance between the projector and the screen determines the size of the projected image, as shown below. Because other adjustments—such as those made with the Aspect button— also affect the size of the image, the numbers shown in the illustration should be considered as general guidelines, not exact measurements.
PAGE 4
EPSON PowerLite Home 10 Projector Turning Off the Projector Turning the Projector On and Off When you’re ready to shut down the projector, follow these steps: Once you’ve connected the projector to your computer or other equipment, follow these instructions to turn it on and display an image: 1. Turn off your video equipment first. (If you’re connecting to a computer, leave the computer on.) 1. Make sure the power is turned off for the projector and any sources connected to it. 2.
PAGE 5
EPSON PowerLite Home 10 Projector ❏ Squeeze Best for projecting wide-screen format (16:9) images; when images output in 4:3 format are projected, they are elongated horizontally. 2. If your image looks like or , press the and buttons on the projector’s control panel until the image is corrected. Note: You can only correct vertical distortion with this function. Also, the screen image becomes smaller when you perform keystone correction.
PAGE 6
EPSON PowerLite Home 10 Projector Light Switching Between Picture Sources You can connect the projector to multiple video sources and use the buttons on the projector or remote control to switch between them: ❏ Press the Source button on the projector to move through all the video source options. ❏ On the remote control, press the Input A/B button to select a computer or component video source. Press the S-Video/Video button to select a composite or S-video source.
PAGE 7
EPSON PowerLite Home 10 Projector ❏ You may be using the wrong source setting. Press the Source button on the projector, or the Input A/B or S-Video/Video buttons on the remote control to move through the source settings. ❏ If you’re using Windows,® hold down the Fn key and press the function key that lets you display on an external monitor. It may have an icon such as , or it may be labelled CRT/LCD. (Allow a few seconds for the projector to sync up after pressing it.
PAGE 8
EPSON PowerLite Home 10 Projector ❏ The battery is weak or not installed correctly 4. Click Mirror Displays in the lower corner of the screen. One of the monitor icons automatically moves on top of the other. ❏ Ambient light is too bright, or fluorescent light is shining into the infrared receiver ❏ Other equipment emitting infrared energy is present (such as a radiant room heater) Switch between different video sources Click here Changes the picture’s aspect ratio If you’re using Mac OS 9.
PAGE 9
EPSON PowerLite Home 10 Projector Changing Menu Settings If you see a line menu or slider bar, press the left or right arrow button on the remote control, or the or button on the projector to change the setting. You can use the buttons on the projector or remote control to display the menus and change settings. 5. Press the Esc button to return to the previous menu. 1. Press the Menu button on the projector or remote control.
PAGE 10
EPSON PowerLite Home 10 Projector 3. Turn the projector upside-down. Push in the tab on the air filter cover and remove the cover. Cleaning the Air Filter If the air filter becomes clogged with dust, it can cause overheating and damage the projector. Follow these steps to clean the filter: 1. Press the P Power button to turn the projector off, and wait for the P power light to stop flashing. 2. Unplug the power cord and disconnect any cables. 3. Turn the projector upside-down 4.
PAGE 11
EPSON PowerLite Home 10 Projector 7. Carefully insert the new lamp and tighten the retaining screws. Follow these steps to replace the lamp: 1. Press the P Power button to turn the projector off, then wait for the P power light to stop flashing. 8. To replace the lamp cover, insert the tabs and then snap the cover into place. 2. Unplug the power cord and disconnect any cables. 3. If the projector has been on, let it cool for at least one hour. 4. Turn the projector upside-down.
PAGE 12
EPSON PowerLite Home 10 Projector You can purchase these accessories from your dealer, by calling EPSON at (800) 873-7766, or by visiting the EPSON Store at www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral. Transporting the Projector When shipping the projector for repairs, use the original packaging material if possible. If you do not have the original packaging, use equivalent materials, placing plenty of cushioning around the projector.
