EPSON Stylus CX3100/3200 Revision A
Disassembly and Assembly Disassembly of Printer 45

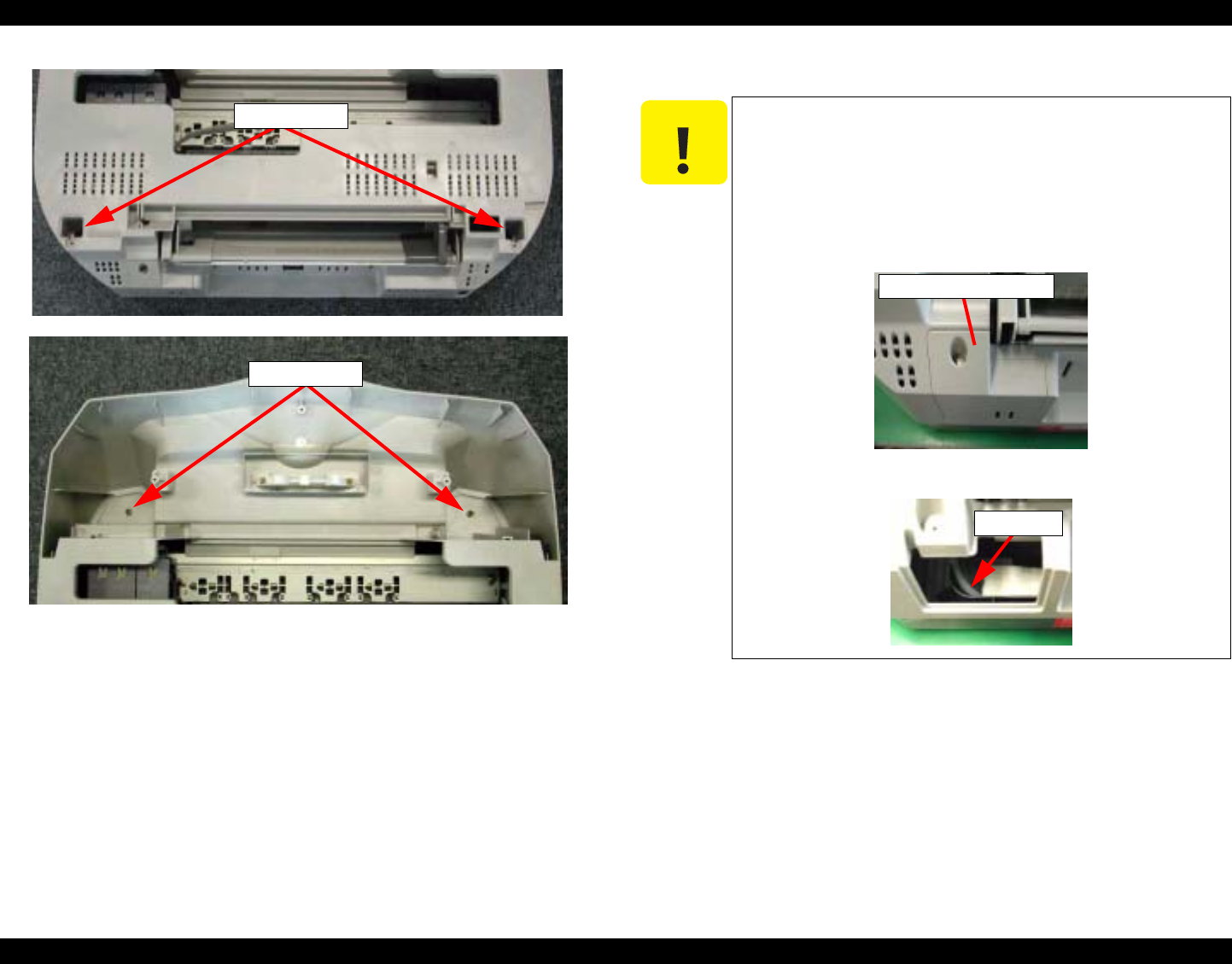

Figure 4-19. Screws securing the Middle Housing
NOTE: Screw tightening torque: 0.5-0.7 Nm
5. Move the left guide edge of the ASF to the left end.
6. Shift the Middle Housing rearward slightly and lift it for removal.
CBP 3x10
CBP 3x10
C A U T I O N
After installing the Middle Housing, remove the Tube Cover once
and make certain that the tube is inserted into the Porous Pad
properly.
Remove the one screw (CBP 3x10) securing the Tube Cover
and remove the Tube Cover.
NOTE: Screw tightening torque: 0.5-0.7 Nm
Check that the tube is inserted into the Porous Pad properly.
Tube Cover
Tube
