EPSON Stylus CX3100/3200 Revision A
Maintenance Overview 78

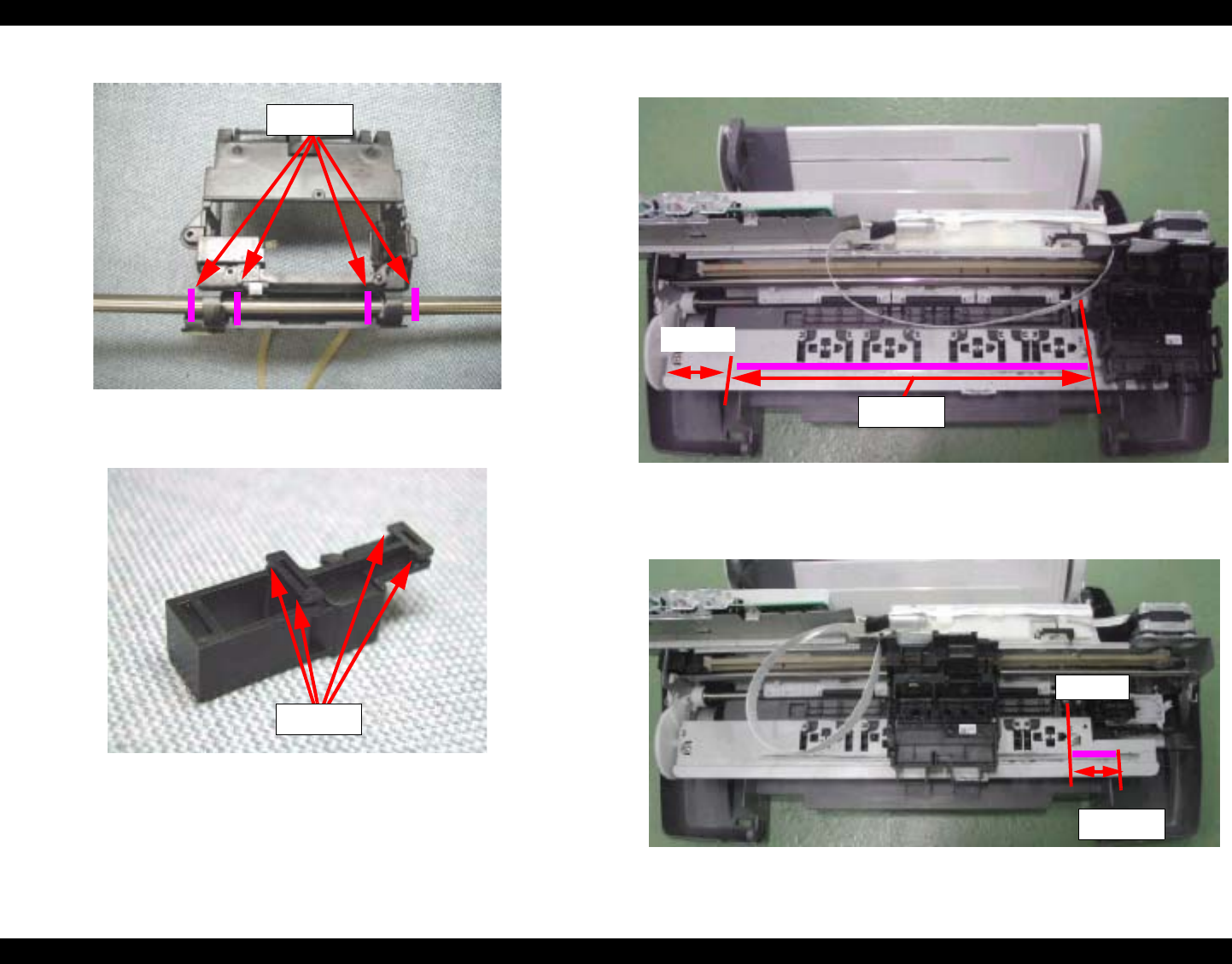

Figure 6-2. Lubrication Points of the Printer 1
Figure 6-3. Lubrication Points of the Printer 2
Figure 6-4. Lubrication Points of the Printer 3
Figure 6-5. Lubrication Points of the Printer 4
G-58
G-58
G-58
30 mm
G-58
20 mm
