EPSON Stylus PHOTO RX500/510 Revision C

Disassembly and Assembly Main Unit Removal 41

4.2 Main Unit Removal

4.2.1 Panel Unit Removal

1. Remove a USB cable from the Stylus PHOTO RX500/510 unit.

2. Remove the operation panel from the panel unit.

3. Remove two screws securing the panel unit.

4. Remove the panel unit from the printer.

5. Remove three screws that secure front housing.

6. Remove front housing from the printer.

7. Unhook four locations, and remove the decorative panel from the middle housing.

8. Disconnect a panel harness (CN8) to the panel unit from the main board.

9. Remove a the panel unit from the Stylus PHOTO RX500/510 unit.

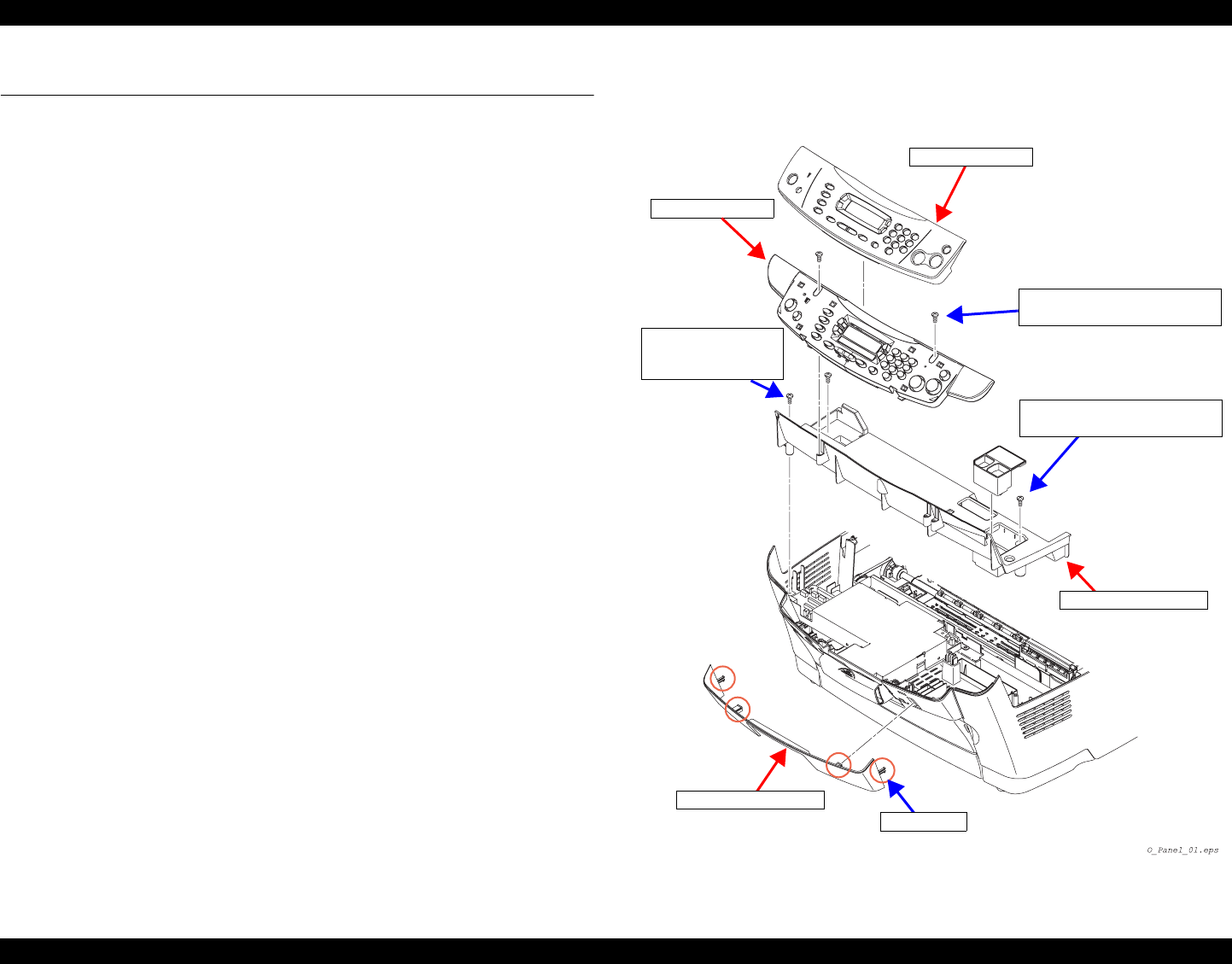

Figure 4-1. Panel Unit Removal

C.B.P Tite 3x8,F/ZN

Tightening torque:0.6 ± 0.1 N

⋅m

C.B.P Tite 3x10,F/ZN

Tightening torque:0.6 ± 0.1 N

⋅m

C.B.P Tite 3x6,F/ZN

Tightening torque

:0.3 ± 0.05 N

⋅m

Hook

Operation Panel

Panel Unit

Front Housing

Decorative Panel
