Adjustment Adjustments by Adjustment Program 75
5.2.3.5 EEPROM data copy
The function is to back up → restore (to the new Main Board) the adjustment values
that have been stored in EEPROM on the Main Board. Use of this function will reduce
the man-hour for adjustment significantly.
The data to be backed up are as follows.
Note “*”: For your confirmation, the adjustment values are displayed at “Adjusted items” in
the right area on the screen.

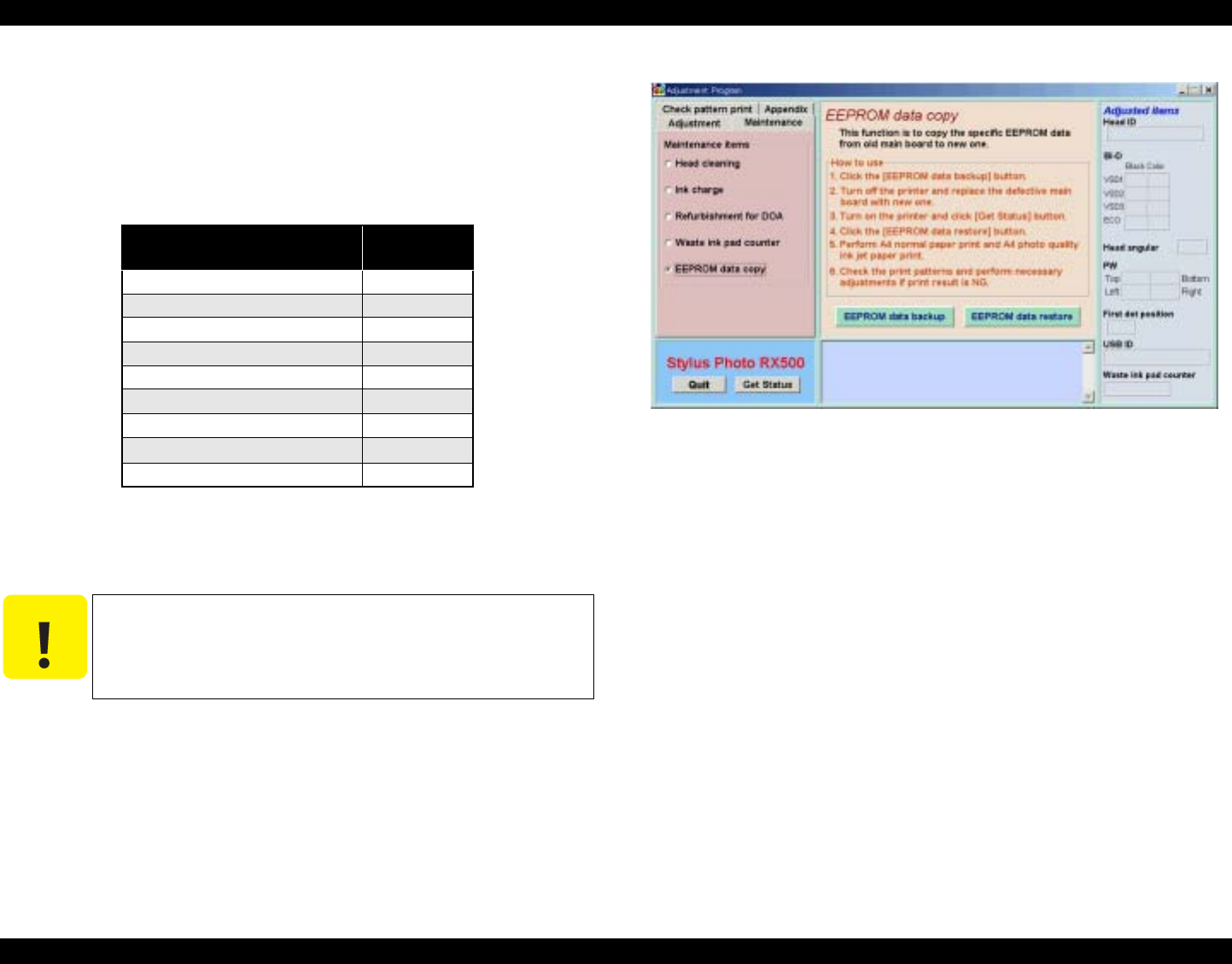

Figure 5-17. EEPROM Data Copy Screen
Table 5-2. Data to be Backed Up
Data to be Backed Up
Page for
Adjustment
USB ID p67
Head ID p68
Head angular adjustment value p68
Bi-D adjustment value p70
PW sensor adjustment value p71
1st Dot Position Adjustment p69
Calorific Limitation Input p72
Ink consumption counters –
Waste ink pad counter p74
C A U T I O N
After restoration, print the check patterns for all the adjustments
above and check each adjustment value. If there is any
abnormality, make adjustment for the relevant items.
 Refer to “5.2.4 Check Pattern print (p76)”
