5-139
Maintaining and Transporting the Printer | 139

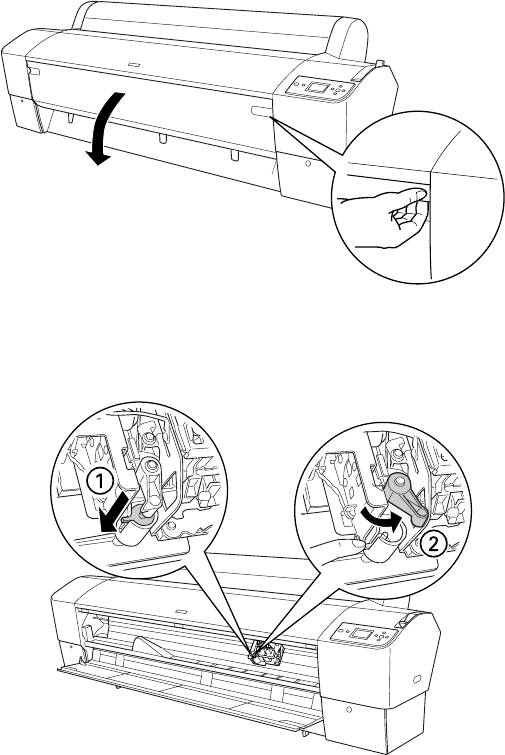

5. Open the front cover.
6. When
SEE LABEL TO REPLACE CUTTER is displayed on the LCD
display, hold down the side pin as shown and turn the latch to the right.
7. Release the side pin. The cutter pops out.
WARNING: The blade is
sharp. Be careful when
removing it.
7800-9800Guide.book Page 139 Monday, April 10, 2006 11:59 AM
