5-146
146 | Maintaining and Transporting the Printer
7. Lift the printer using the hand grips where provided. (See the stickers
located near the rear hand grips for the correct holding position.)
8. Keep the printer level while moving it. See page 148 for information
about setting up the printer after transporting it.
To ship the printer a longer distance, you should repack it using the original
box and packing materials. If you don’t have the original packaging, you can
purchase replacement packaging from Epson. See page 11 for more
information.
Removing the Optional Print Server Card
If you need to exchange your printer or ship it to Epson for repairs, you must
remove the Ethernet card.
1. Turn off the printer and disconnect the power cord.
2. Disconnect the Ethernet cable.
3. Remove the two screws securing the card.
4. Make sure the card is cool before pulling it out of the slot.

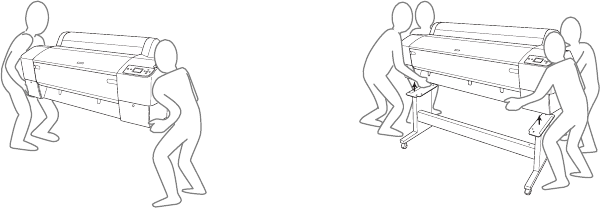

WARNING: The Stylus
Pro 7800 weighs about
131 lb (59 kg) and should be
lifted by two people.
The Stylus Pro 9800 weighs
about 198 lb (90 kg) and
should be lifted by four
people.
Stylus Pro 7800 Stylus Pro 9800
WARNING: The card will be
hot after printing. Make sure
you allow the card to cool
before handling it.
