1-26
26 | Setting Up the Printer

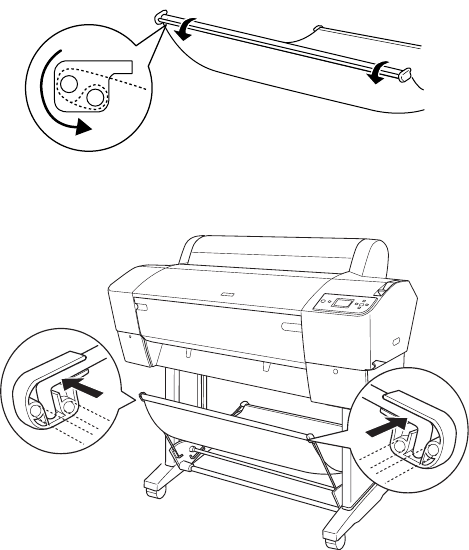

3. Rotate the front bar once as shown, so the fabric folds around the bar.
4. Snap the connectors onto the front hooks as shown.
5. If you find that your roll paper is curled too tightly to eject properly,
attach the two paper guides to the bottom of the printer. See page 161
for more information.
6. Raise the stabilizer knobs and unlock the casters. Then move the printer
to the place of use. (The casters are meant for moving the printer for
only a short distance.) Lock the casters and extend the stabilizer knobs
after moving.
7. Make sure you save the box and packaging in case you need to ship the
printer.
When you are finished assembling the printer, go to “Connecting the Power
Cord” on page 37.
