1-33
Setting Up the Printer | 33

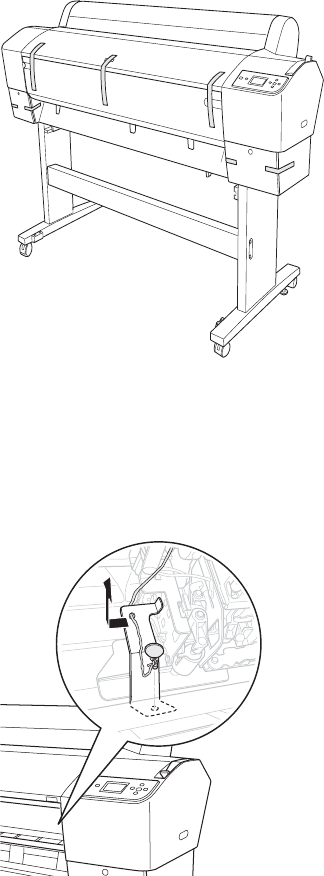

5. Remove any packing tape from the front cover, ink compartment
covers, and maintenance tank. Check underneath and on the sides of the
printer to make sure you remove all the tape.
6. Open the front cover. Follow the red wire to locate the screw and
bracket securing the print head. Then unscrew the bolt and remove the
bracket, as shown.
Save the bolt and bracket in case you need to ship the printer.
7. Close the front cover.
