1-35
Setting Up the Printer | 35

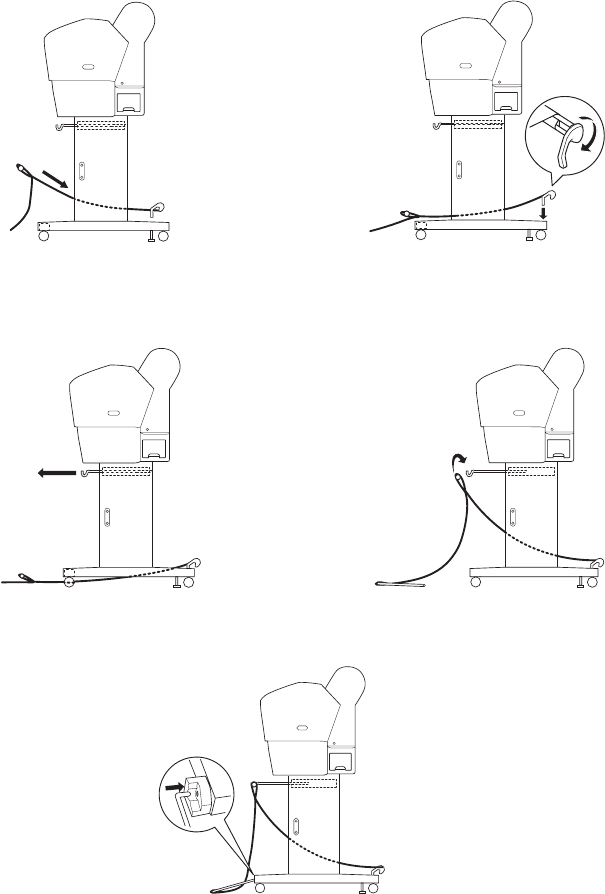

3. Pass the basket’s rear bar to the back of the printer. Rotate the bar one
revolution so that the fabric folds around the bar. Then insert the plastic
pins into the stand as shown.
4. Slide out the upper basket hooks to their full length. Then hook the
middle bar of the basket as shown.
5. Insert the lower bars into the holes on the bottom of the base as shown.
7800-9800Guide.book Page 35 Monday, April 10, 2006 11:59 AM
