Setup guide

Installing the Take-up Reel System | 19
8.

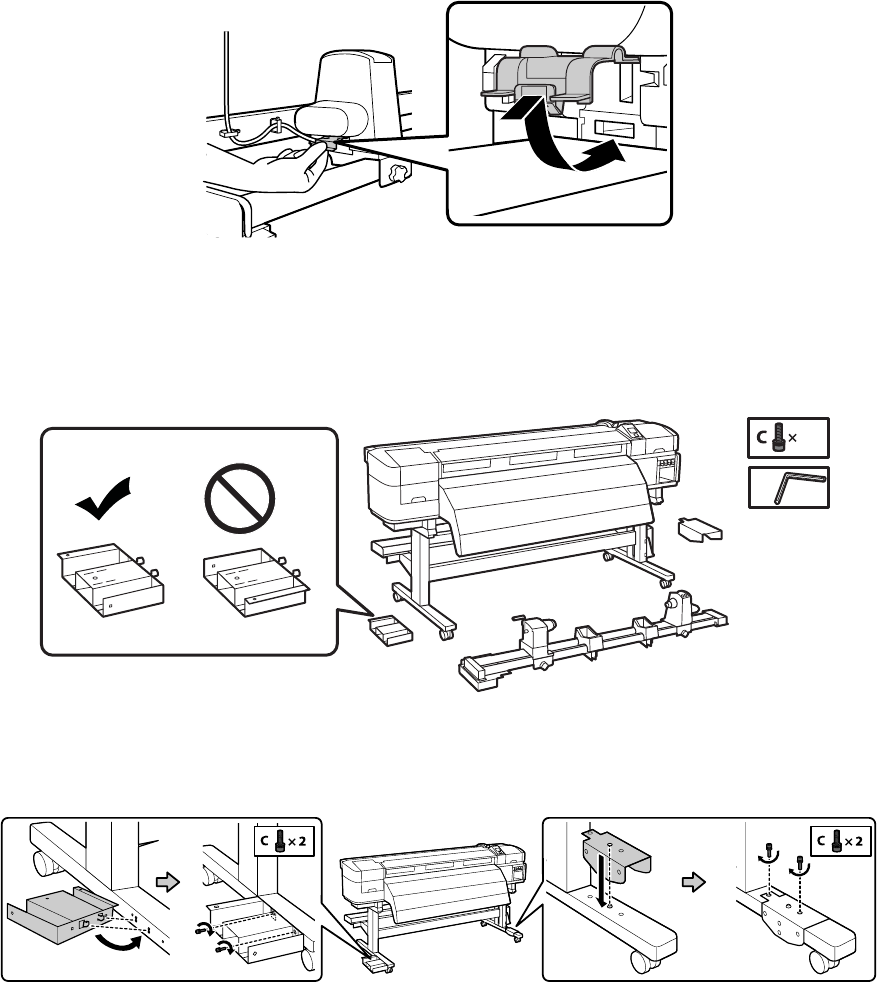

Make sure the communication cable is fully seated in the port and then close the port cover.
Installing the Take-up Reel System
You need the following parts to assemble and attach the take-up reel system:
Note: Make sure the bracket is oriented correctly when you attach it.
1.
Attach the brackets to the front of the printer using two C screws on each side as shown.
13
a
