22 | Installing the Media Guide Bar
Installing the Media Guide Bar

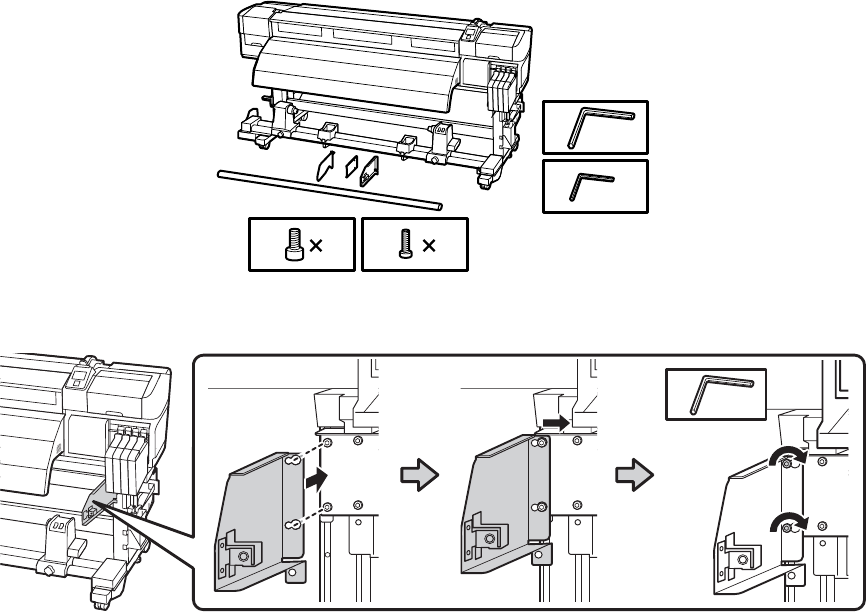

You need the following parts to assemble and attach the media feeding unit:
1. Place the mounting bracket over the screws, shift the plate to the right, and tighten the screws.
5 E
4F
a
b
a
