8
|
Assembling the Stand

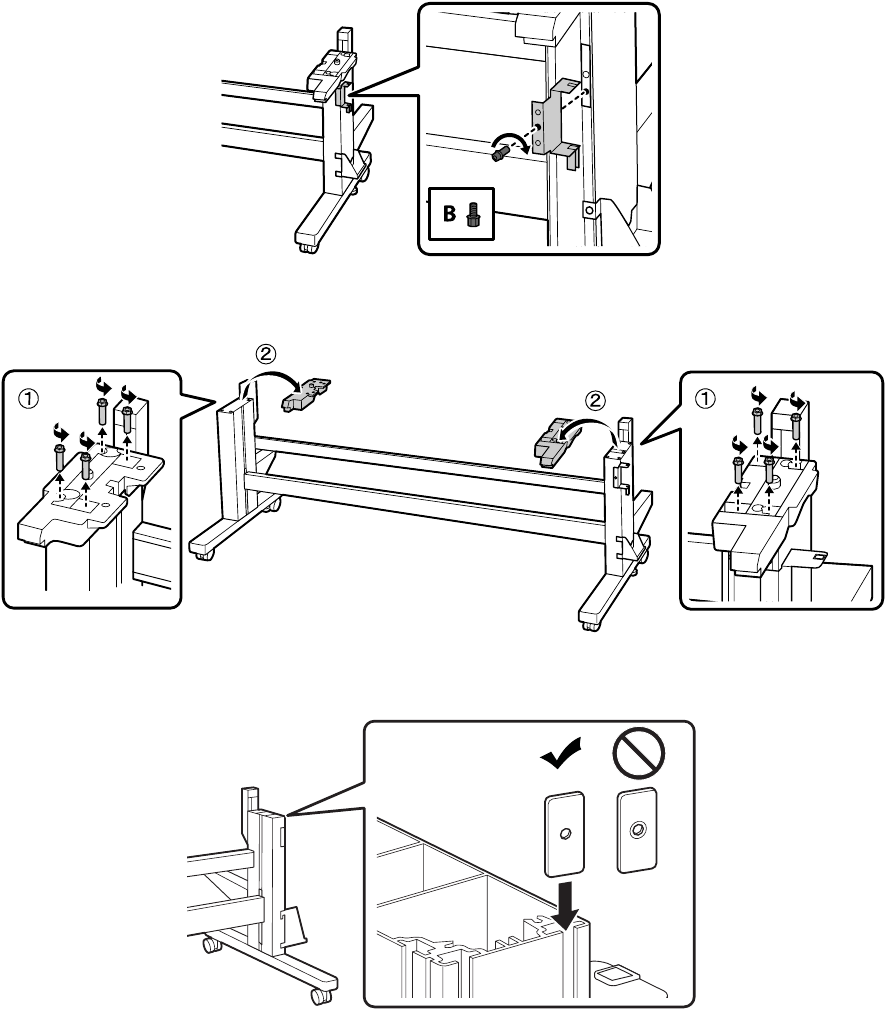

6.
Temporarily fasten the waste ink
tu
be bracket using
one B screw.
7.
Remove the four screws from each le
g, then remove the plastic pieces.
8.
Slide the mounting piece into the groove, as shown.
