Unpacking the Printer

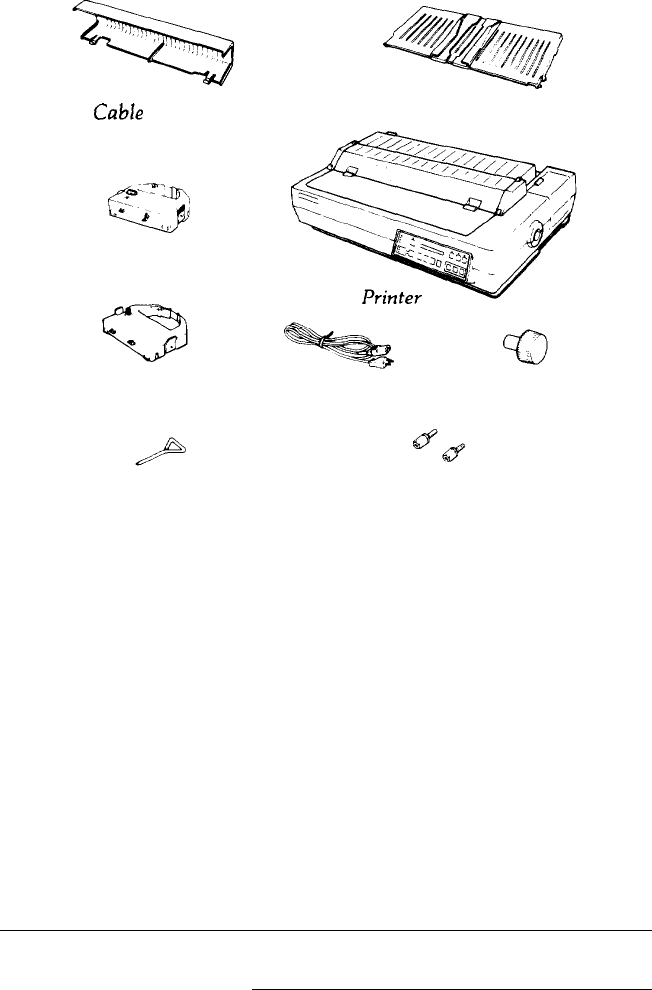

As you unpack the printer, check that you have all parts shown below
and that none have been damaged during transportation.
Cabfe cover
Color
ribbon
cartridge
Ribbon cartridge
Cross-head screw driver
Paper guide
Power cable
Platen knob
5Y
Optional connector lock nuts
Removing the protective materials
The printer is protected during shipping by two screws, a print head
protector, and white foam packing material. These protective items must
be removed before you turn on the printer by following the steps below.
After removing these items, store them with the other packaging material
in case you ever need to transport your printer.
