Printer User Manual
Table Of Contents
- FRONT MATTER
- TABLE OF CONTENTS
- INTRODUCTION
- CHAP 1-SETTING UP THE PRINTER
- CHAP 2-PAPER HANDLING
- CHAP 3-USING THE PRINTER
- CHAP 4-USING SOFTWARE AND GRAPHICS
- Using the LQ-2550 With Application Programs
- Computer-Printer Communication
- Enhancing Your Printing
- Graphics
- User-Defined Characters
- Designing Your Characters
- Design Grids
- Data Numbers
- Sending Information to Your Printer
- Printing User-Defined Characters
- Copying ROM Characters to RAM
- Letter Quality Characters
- Proportional Mode Characters
- Superscripts and Subscripts
- The Graphics Command
- Column Reservation Numbers
- A simple Graphics Program
- Using Hand-Calculated Data to Print Graphics
- Using Software and Graphics
- Mixing Print Styles
- CHAP 5-MAINTENANCE AND TRANSPORTATION
- CHAP 6-TROUBLESHOOTING
- Troubleshooting
- Problems and Solutions
- The Printer Does Not Print
- The Printer Stops Printing
- The Printout is Spaced Incorrectly
- The Printout is Faint or Uneven
- The Printout is Not what You Expect
- Single Sheets Do Not Feed Properly
- Continuous Paper Does Not Feed Properly
- Cut Sheet Feeder Does Not Load Paper Correctly
- The Short Tear-Off Feature Does Not Work Properly
- Color Printing Is Not What You Expect
- Data Dump Mode
- CHAP 7-USING PRINTER OPTIONS
- CHAP 8-COMMAND SUMMARY
- APPENDIX A-TECHNICAL SPECIFICATIONS
- GLOSSARY
- INDEX
Switching between the cut sheet feeder and continuous paper
The LQ-2550 allows you to easily switch between the cut sheet feeder
and the tractor feeding system without having to remove either the
feeder or the continuous paper supply.
To switch between these two paper feeding systems, be sure that:
l
Continuous paper is loaded in the standby position.
l
The cut sheet feeder is installed.
l
The printer is off line.
Note: If you wish
to
use the short tear-off feature, you can tear off the
perforation of the continuous paper at the cut sheet feeder’s tear-off
edge. See Chapter 3 for more information on the short tear-off feature.

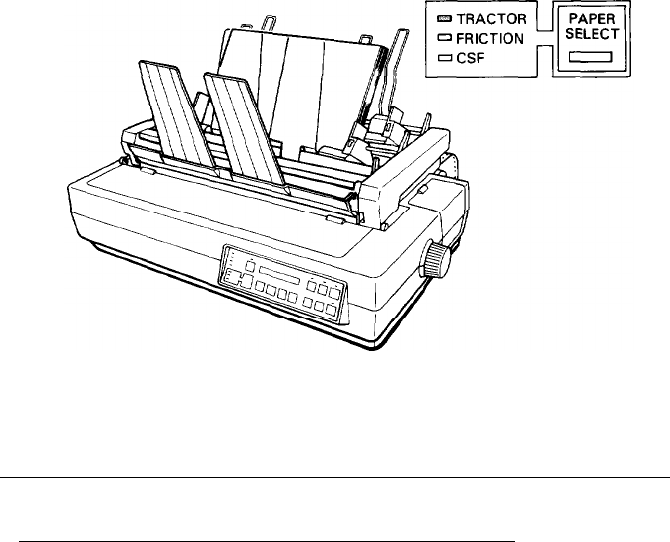

1.
To switch from cut sheet feeder operation to continuous paper, press
the PAPER SELECT
button until the
TRACTOR
light goes on.
Continuous paper is now fed to its loading position, and the front
section of the cut sheet feeder is automatically tilted forward.
Using Printer Options
7-17
