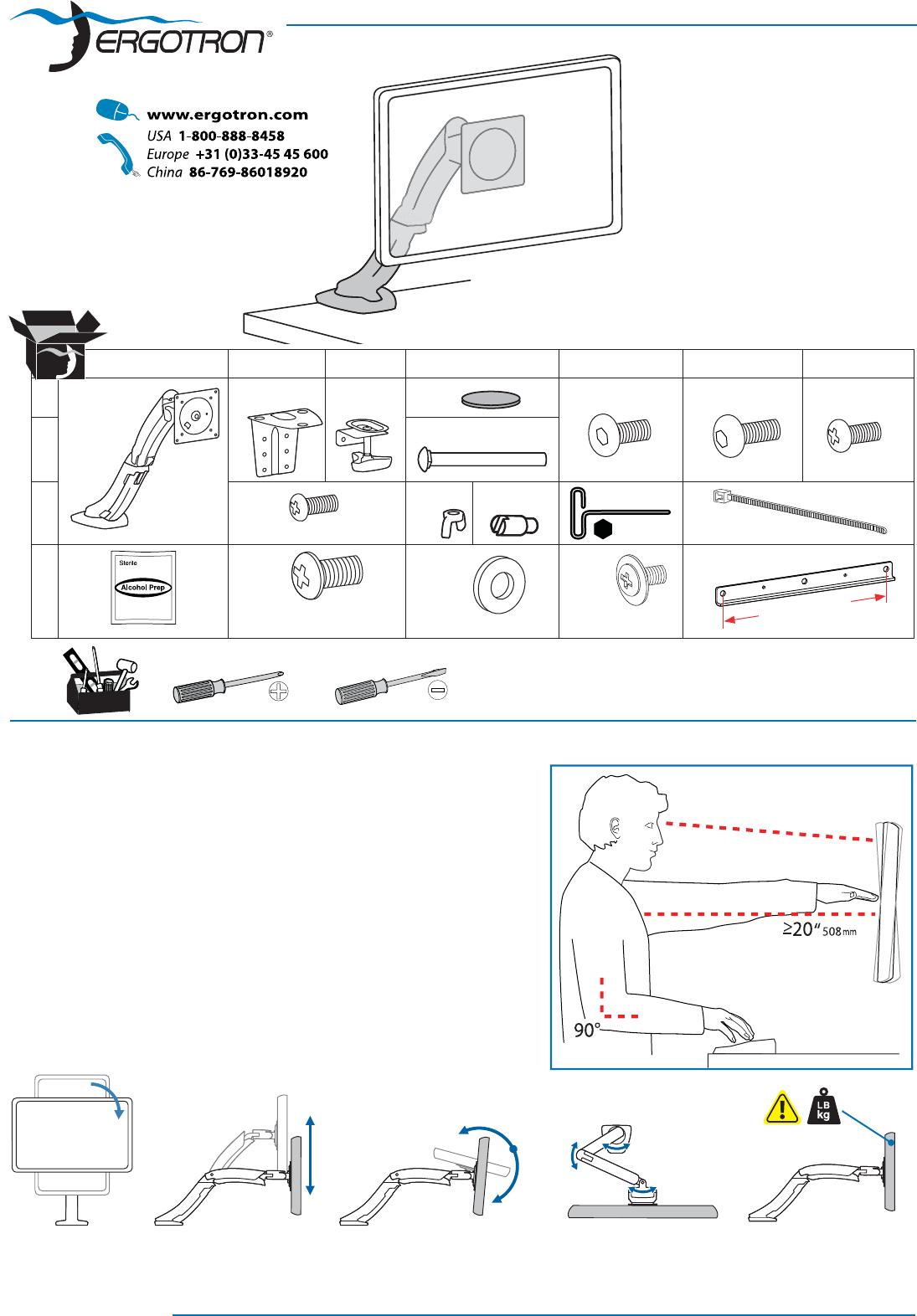

888-45-155-W-01 rev. D • 10/08

ABCD EFG

MX Desk Mount LCD Arm

4mm

M6 x 10mm

M6 x 12mm

M4 x 10mm

1x 1x

1x 4x 3x

M3 x 6mm

M4 x 6mm

200 mm

(7.9")

M6 x 14mm

6mm

4x 8x 4x

0˚/90˚

(130 mm)

75˚

5˚

180˚

360˚

180˚

14 - 30 lbs

(6.35 - 13.61 kg)

Learn more about ergonomic computer use at:

www.computingcomfort.org

Height Position top of screen slightly below eye level.

Position keyboard at about elbow height with wrists  at.

Distance Position screen an arm's length from face—at least 20” (508mm).

Position keyboard close enough to create a 90˚ angle in elbow.

Angle Tilt screen to eliminate glare.

To Reduce Fatigue

Breathe Breathe deeply through your nose.

Blink Blink often to avoid dry eyes.

Break • 2 to 3 minutes every 20 minutes

• 15 to 20 minutes every 2 hours.

Set Your Workstation to Work For YOU!

User's Guide

Guía del usuario

Manuel de l’utilisateur

Benutzerhandbuch

Gebruikersgids

Guida per l’utente

ユーザーガイド

用户指南

사용자 안내서

Summary of content (8 pages)

PAGE 1
MX Desk Mount LCD Arm User's Guide Guía del usuario Manuel de l’utilisateur Benutzerhandbuch Gebruikersgids Guida per l’utente ユーザーガイド用户指南 사용자 안내서 A 1x 1 B C 1x 1x 2 D 4x 1x E F 3x 2x M6 x 10mm 4x 4x M4 x 10mm M6 x 12mm 4x 4mm M3 x 6mm 2x 4x 1x 1x 1x 1x 3 G 8x 4x 4 M6 x 14mm M4 x 6mm 6mm 200 mm (7.9") Set Your Workstation to Work For YOU! Height Position top of screen slightly below eye level. Position keyboard at about elbow height with wrists flat.
PAGE 2
WARNING! Pinch Point ADVERTENCIA: Peligro de pellizco AVERTISSEMENT! Point de pincement WAARSCHUWING! Afknelpunt WARNUNG! Quetschkante AVVERTENZA! Punto di possibile schiacciamento 警告: ピンチポイントです。警告！小心被夹 경고! 핀치 포인트 WARNING! Stored Energy Hazard: The arm mechanism is under tension and will move up rapidly, on its own, as soon as attached equipment is removed.
PAGE 3
1 Choose Mounting Method a a 3x 3x M6 x 10mm 4mm b 4x b c 2x < .63" (16 mm) M6 x 12mm c 4mm .5" - 1.63" (11 - 41 mm) d e 1.42" - 2.6" (36 - 66 mm) < 3" (80 mm) 0.31" - 2"* (8 - 80 mm) d CAUTION: For secure arm attachment and to avoid equipment damage, plate must make contact with underside of desk on both sides of the hole. 888-45-155-W-01 rev.
PAGE 4
2 90˚ 0˚ 1x M3 x 6mm 3 Attach Display ATORNILLE MONITOR FIXER L’ECRAN Montage des Displays Bevestig beeldscherm Fissare il display ノート型パソコンを取付ける安装显示器 디스플레이 부착 A 5 B 5 C 5 D 6 E 6 888-45-155-W-01 rev.
PAGE 5
75 x 75mm A 4x M4 x 10mm 100 x 100mm B 4x M4 x 10mm C 200 x 100mm 1 2x 200 mm (7.9") 4x M4 x 6mm 2 4x M6 x 14mm 4x 6mm 888-45-155-W-01 rev.
PAGE 6
D 100 x 200mm 1 2x 200 mm (7.9") 4x M4 x 6mm 2 4x M6 x 14mm 4x 6mm 200 x 200mm E 1 2x 200 mm (7.9") 4x M4 x 6mm 2 2x 200 mm (7.9") 4x M4 x 6mm 3 4x M6 x 14mm 4x 6mm 888-45-155-W-01 rev.
PAGE 7
4 Cable Routing Guía de cableado Câblage Kabelführung Kabels trekken Disposizione dei cavi ケーブルの配線电缆敷设 Cable Routing(케이블 라우팅) 5 It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.
PAGE 8
88-45-155-W-01 rev.
