6. Physical Dimensions and PCB Land Pattern
6.2 Recommended PCB Land Pattern
42x0.90
42x1.50
0.50
0.50
1.00
2.25
1.50
1.50
15.45
Antenna Area
18.00
31.00
6.30
1
17
26
42
4.10
4.10
1.10
0.40
1.10
0.40
7.81
Unit: mm
Copper
Via for thermal pad

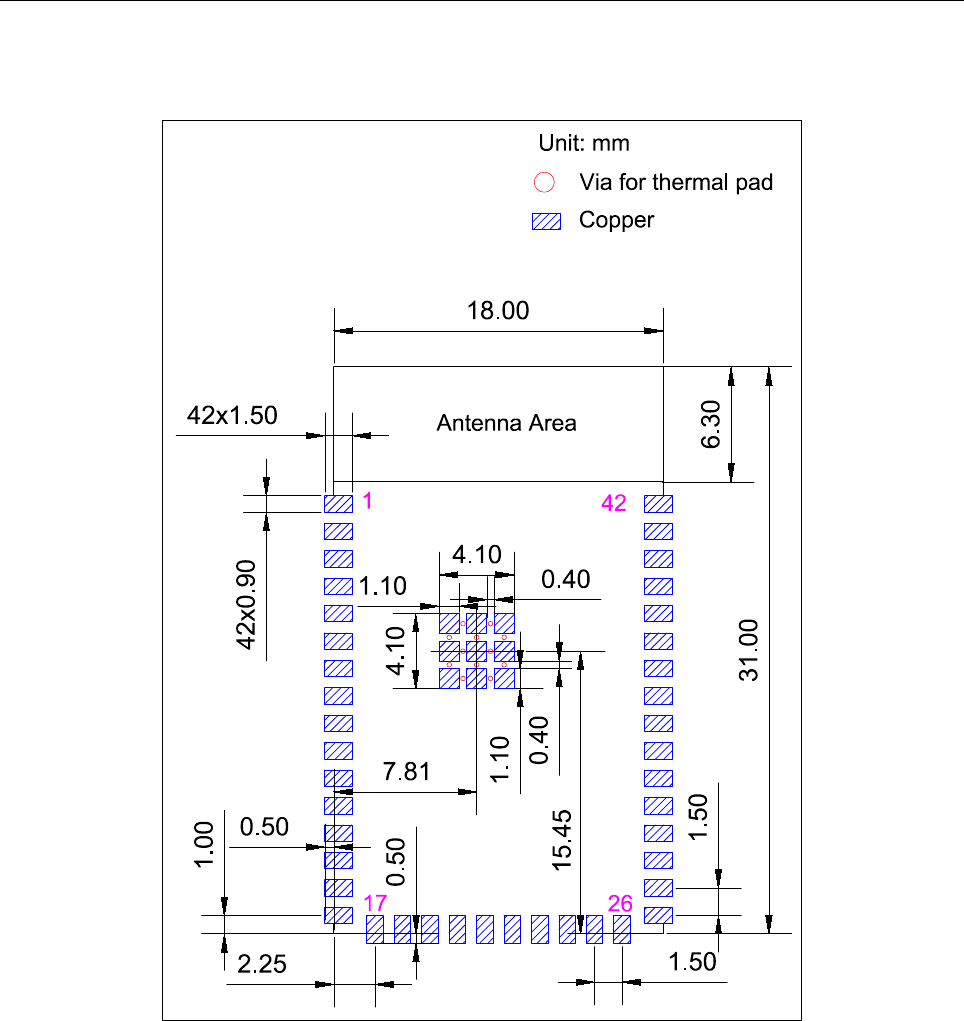

Figure 7: Recommended PCB Land Pattern
