Testing Network Connections
OTDR 99
Setting Storage Parameters for Trace Route Tests
Setting Storage Parameters for Trace Route
Tests
Each time you save trace route results, the unit suggests a file name based
on autonaming settings. After saving a result, the unit prepares the next file
name by incrementing the suffix.
File names: maximum 20 characters for prefix, 3 digits for number.
Trace route results are saved in text (.txt) format.
To set the trace route autonaming scheme:
1. Press Menu, select Setup > Trace Route,
and then press Enter.

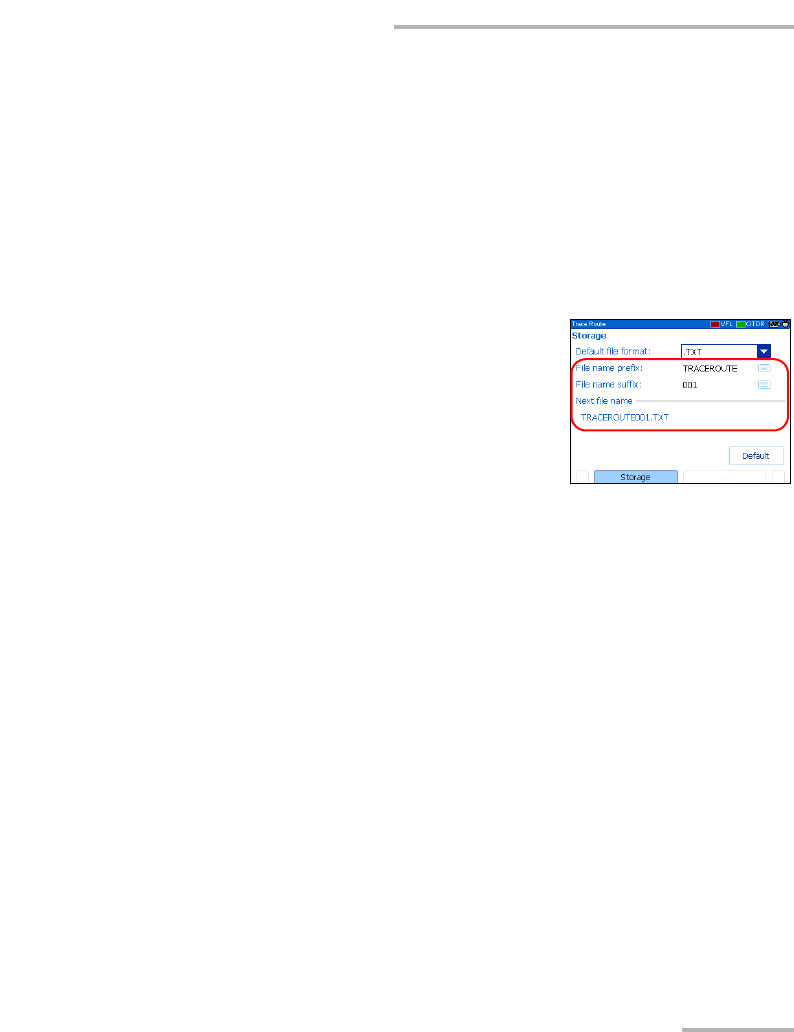

2. Use the left/right function arrows until you
see Storage and display the pane
(F1/F2 key).
3. Use the arrows to select the file name prefix, or file name suffix.
4. Press Enter to display the on-screen keyboard (for details about using
keyboards, see Using Menus and Keypad on page 13).
5. Set the name or value, and then press OK (F1/F2 key) to hide the
keyboard.
To revert to the factory-default autonaming scheme:
1. Press Menu, select Setup >Trace Route, and then press Enter.
2. From the Storage pane, use the arrows to select Default, and then
press Enter to confirm.
