Maintenance
OTDR 105
Recharging Main Batteries
Recharging Main Batteries

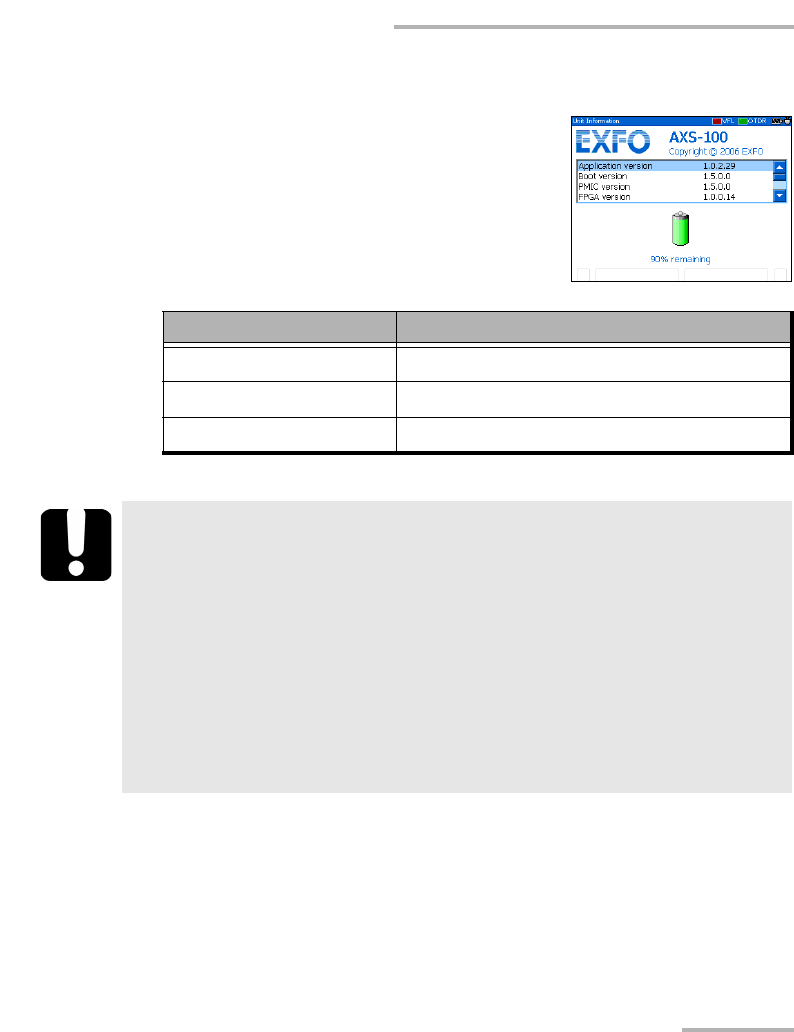

³ The charge status of both batteries is shown
on the Unit Information pane
(press Menu, select File Manager/Info. >
Information, and then press Enter).
³ The charge status is also indicated by the
LEDs on the left side of the unit:
To recharge the main batteries:
Connect the unit to a power outlet (or car outlet) using the AC
adapter/charger. The charge cycle will start and end automatically.
Status LED Battery Charge Status
Green Fully charged
Red Charging
Yellow Error
IMPORTANT
³ Batteries are not charged at the factory. Fully charge them
(about 3 hours if unit is off) before using the unit for the first
time.
³ Batteries function and charge properly between 0 °C and 45 °C
(32°F and 113°F). Batteries will not charge if the temperature is
below -10 °C (14 °F) or above 45 °C (113 °F).
³ Never store at temperatures above 60 °C (140 °F).
³ Charge only with specified charger.
