Customizing Your OTDR
OTDR 19
Selecting a Printer
Selecting a Printer
To print reports, you must configure the printer first. Your unit supports the
Printek 2” printer only and communicates with it via the infrared port
located on the top panel.
If you want to print on a network printer or if you want to print other type of
reports, you must transfer the desired files on a computer on which
ToolBox 6 (or later), FastReporter or OTDR Viewer is installed.
To select a printer:

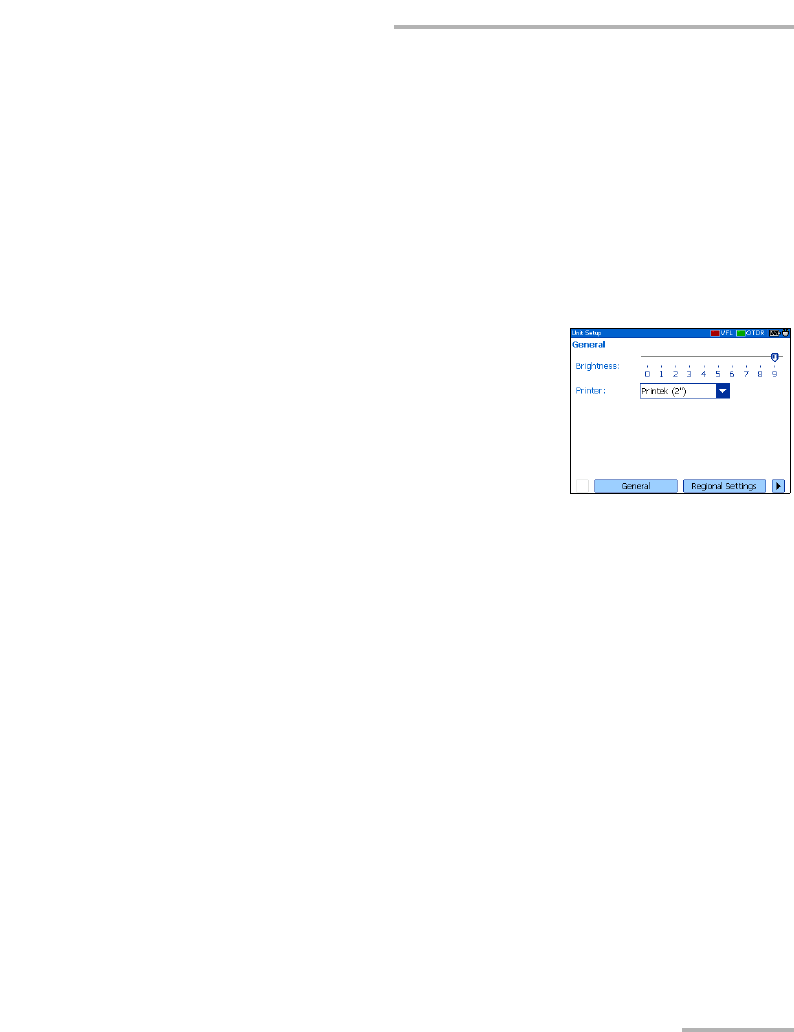

1. Press Menu, select Setup > Unit, and then
press Enter.
2. If necessary, use the left/right function
arrows until you see General, and then
display the pane (F1/F2 key).
3. Use the up/down arrows to select the Printer
list, and then press Enter to open it.
4. With the current printer highlighted, use the up/down arrows to select
the desired printer, and then press Enter to activate it.
