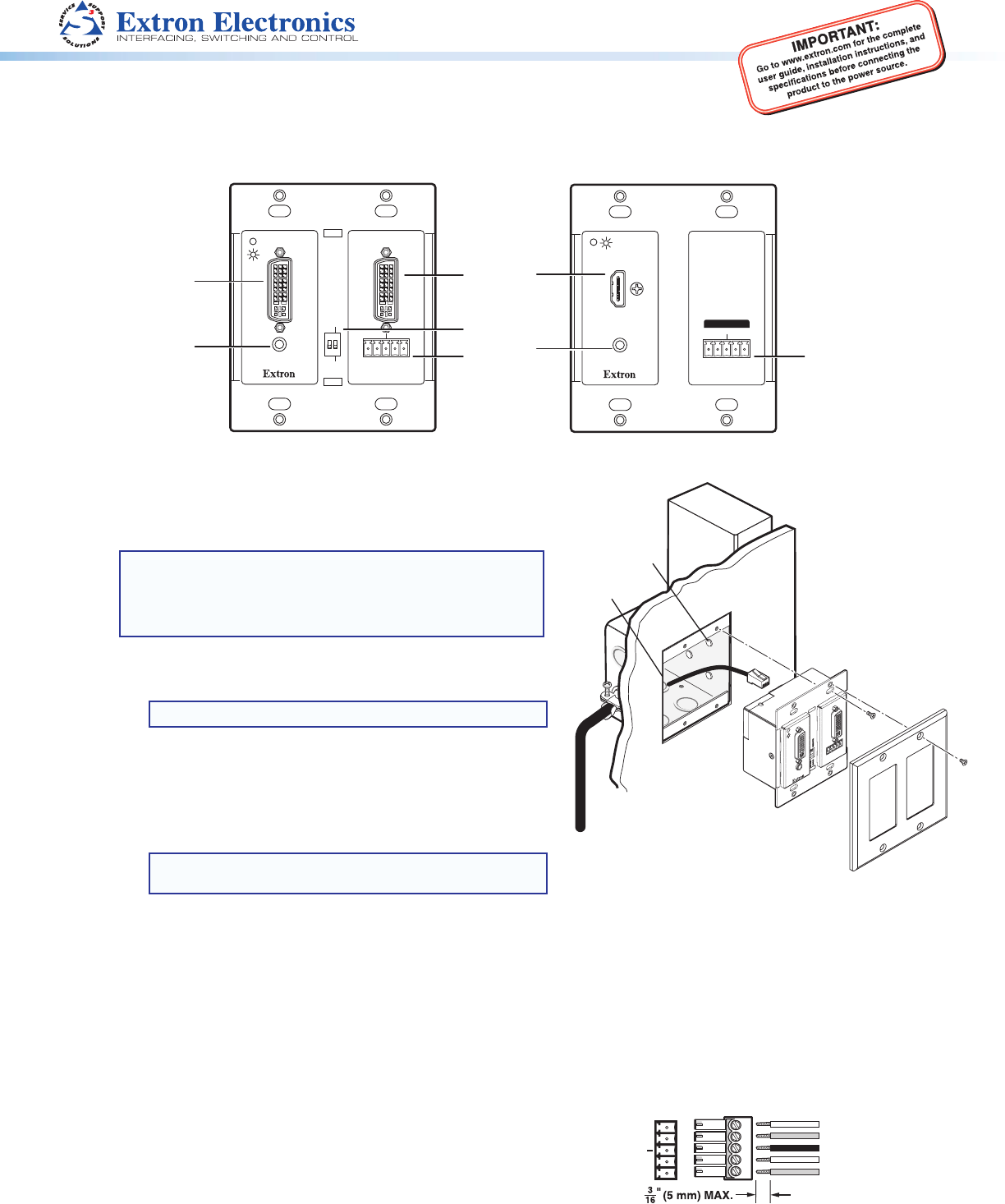

DTP DVI 230 D and HDMI 230/330 D • Setup Guide
This setup guide provides instructions for an experienced installer to set up and operate the
Extron DTP DVI 230 D and DTP HDMI 230 and 330 D extenders.
Installation
Step 1 — Prepare the Mounting Surface
NOTE: Use a wall box with a depth of at least 3.0 inches (7.6 cm).
Alternatively, the included mud ring (MR 200) can be used.
For more information, see the full product user guides at
www.extron.com. The installation must comply with the
National Electric Code.
a. Place the wall box against the installation surface and mark the
opening guidelines.
TIP: Use a level to mark the opening.
b. Cut out the material from the marked area.
c. Secure the wall box with 10-penny nails or #8 or
#10 screws, leaving the front edge ush with the surface.
d. Run all required cables (see steps 4, 5, and 6) and secure them with
cable clamps.
TIP: In order to t the unit in the junction box, do not install
boots on TP cables and RJ-45 connectors.
Step 2 — Disconnect Power
Disconnect all equipment power sources.
Step 3 — Connect Inputs to the Transmitter
A DVI or HDMI input connector — Connect a DVI or HDMI cable between this port and the output port of the digital video source.
B Local output (DTP DVI 230 D only) — If desired, connect a DVI monitor for local monitoring of the input digital image.
C DDC Route DIP switch (DTP DVI 230 D only) — If the local output is not used,
set the DDC Route DIP switch to remote. Ensure that you power the local display
before powering the video source.
D Audio input — Connect an unbalanced stereo audio source to this 3.5 mm mini
stereo jack.
E RS-232/IR Pass-Through connector — Plug an RS-232 or modulated IR device
into the RS-232/IR Pass-Through port. Wire the cable as shown to the right.
Ground
Receive pin on connected unit
Transmit pin on connected unit
Connected RS-232
and IR Device Pins
Tx/Rx
Pins
Receive pin on connected unit
Transmit pin on connected unit
RxTx
RS-232 IR
RxTx
G
Signal Output
Cable
Cable
Clamp
Decora Faceplate
Extron
DTP DVI 230 D
Screws or
Nails
Wall opening is
flush with edge of box.
Wall Stud
LOCAL OUT
Tx Rx G Tx Rx
RS-232
IR
INPUTS
DVI-D
AUDIO
INPUTS
LOCAL OUT
DVI-D
AUDIO
Tx Rx G Tx Rx
RS-232
IR
INPUTS
LOCAL OUT
DVI-D
AUDIO
REMOTE
DDC
ROUTE
LOCAL
Tx Rx G Tx Rx
RS-232 IR
ON
1 2
INPUTS
AUDIO
Tx Rx G Tx Rx
RS-232 IR
OVER DTP
DTP DVI 230 D Tx DTP HDMI 230/330 D Tx
