Under-the-Faceplate Features
LINK 1
LINK 2
HDMI INPUT
AUDIO INPUT
COMPUTER INPUT
POWER
RESET
CONFIG
PC
HDMI
HDCP
AUDIO
f
e
g

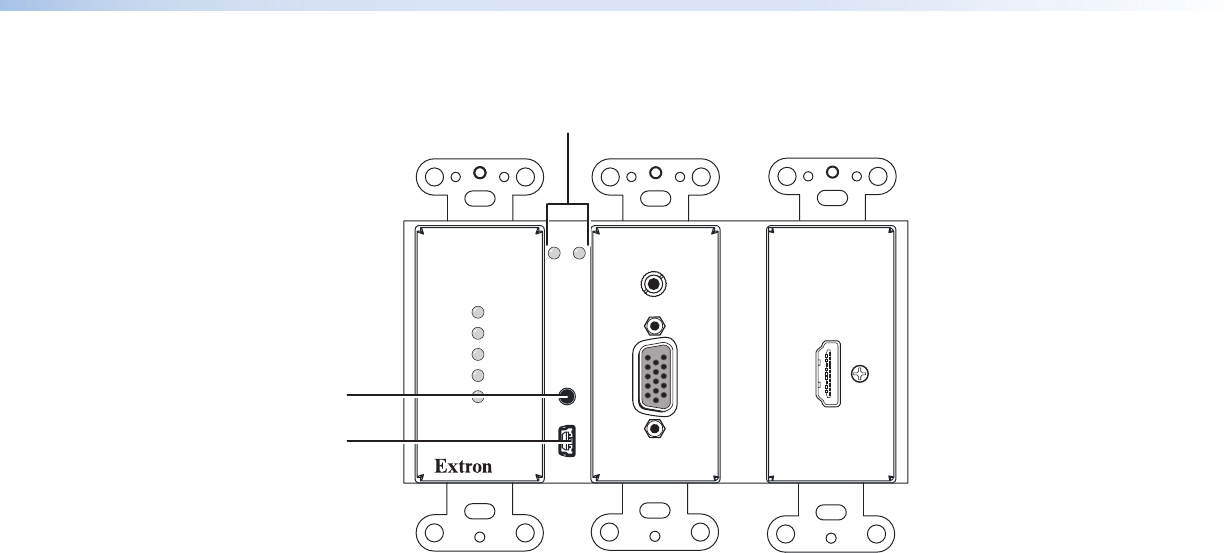

Figure 5. FOX T UWP 302 Under-the-Faceplate Features
e
Link 1 and Link 2 LED indicators — Light when there is light present on the
corresponding fiber optic port.
f
Reset button — Press the Reset button to return device settings or firmware to the
factory default settings (see System Reset on page 12).
g
Config port — Connect a host device, such as a PC, to the mini-USB type B config
port for RS-232 protocol control of all FOX T UWP 302 functions. Configure the
FOX T UWP 302 with SIS commands (see Simple Instruction Set Control on page 13)
or the FOX Extenders control program (see FOX Extenders Control Program on
page 21).
FOX T UWP 302 Wallplate Transmitter • Installation and Operation 7
