Error responses
When the FOX T UWP 302 receives an SIS command and determines it is valid, it performs
the command and sends the corresponding response to the host device. If the command is
determined invalid or contains invalid parameters, the transmitter returns an error response
to the host. The error response codes are:
E01 = Invalid input number E13 = Invalid parameter
E06 = Invalid switch attempt in this mode E14 = Not valid for this configuration
E10 = Invalid command E17 = Invalid command for signal type
E12 = Invalid port number E22 = Busy
Using the command and response table for SIS commands
The Command and Response Tables begin on page 16. Lowercase letters are
acceptable in the command field except where indicated. Figure 10 shows the hexadecimal
equivalent of ASCII characters used in the command and response tables.

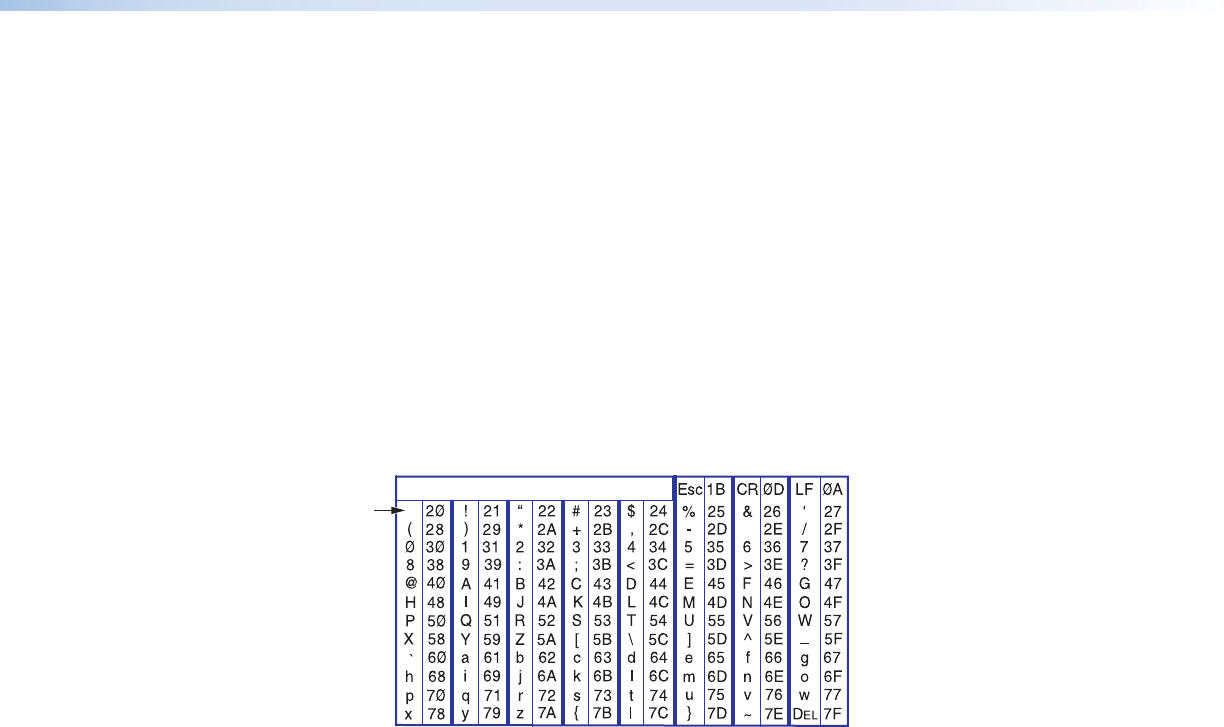

ASCII to Hex Conversion Table
•
Space
Figure 10. ASCII to Hexadecimal Conversion
Symbol definitions
]
= Carriage return and line feed
¦ or }
= Carriage return with no line feed
•
= Space
E or W
= Escape key
FOX T UWP 302 Wallplate Transmitter • SIS Configuration and Control 14
