Connect
The Connect option establishes communication with a device. This function re-establishes
communication with the device if it times out or enables a connection to a new device.
If a device is already connected, the Connect function is disabled until the device is
disconnected or the connection times out.
To re-establish the connection if communication is lost:
1. From the File menu, select Connect. Alternatively, click the icon. This displays the
Communication Setup dialog box, which is the communication module through which
connection to the device is established.
2. Select the communication port from the Port drop-down list.
3. Click Connect. The Communication Setup dialog box closes and the FOX Extenders
Control Program main screen remains open.
Disconnect
The Disconnect option stops communication with the current device, but leaves the FOX
Extenders Control Program open. Once disconnected, configuration can no longer be done
unless connection is re-established.
To disconnect from the device, select
Disconnect from the File menu or click the icon.
The status bar at the bottom of the window indicates that the device is disconnected.
Exit
The Exit option closes the FOX Extenders Control Program.
To exit the program, select Exit from the File menu.
Tools Menu
The Tools menu contains options for displaying device information or configuring the device.

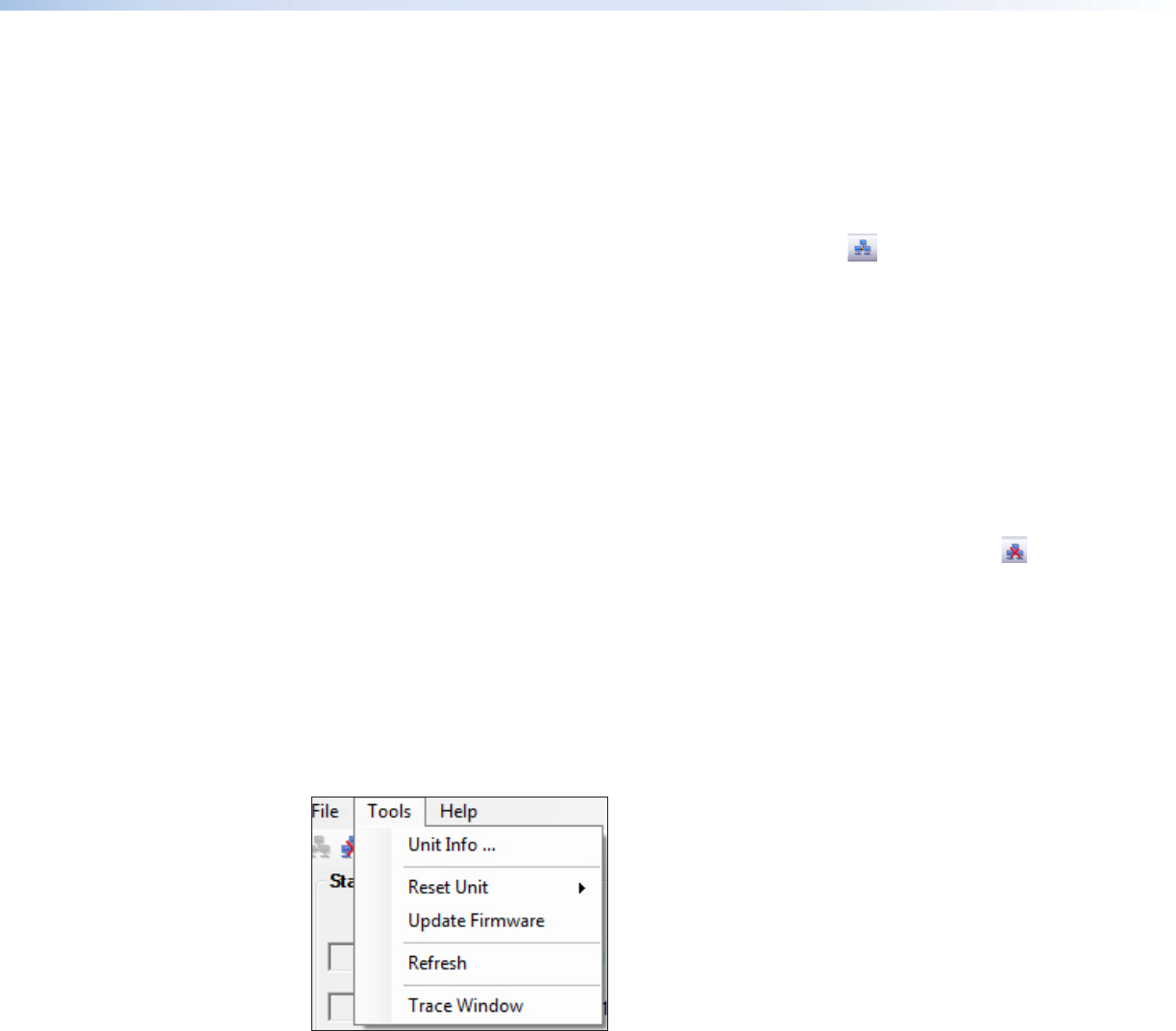

Figure 14. Tools Menu
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 24
