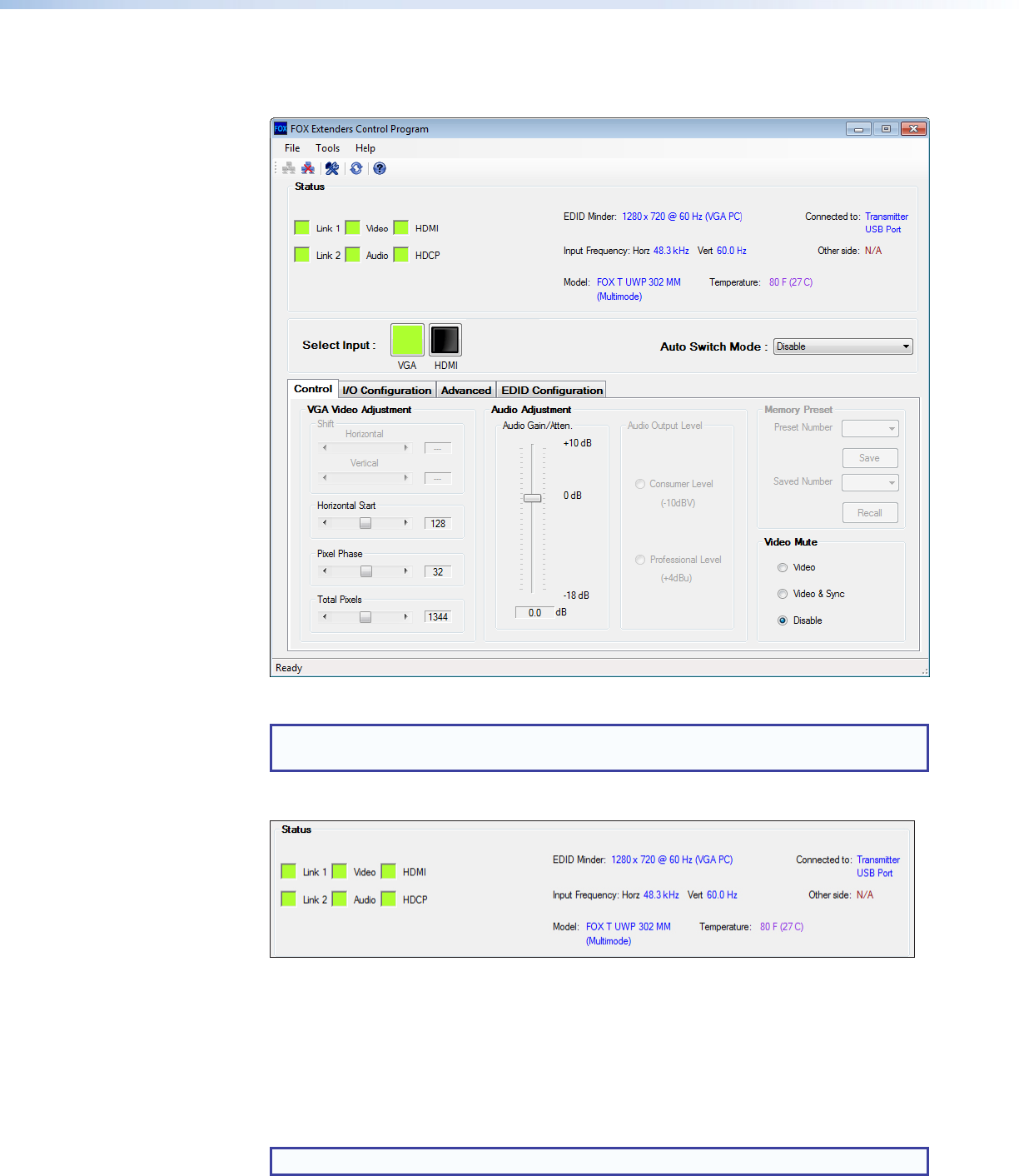

Main Screen
The Main Screen contains status information, input selection, and configuration options.
Figure 22. Main Screen
NOTE: The main screen may appear different from the image above depending on what
is connected. Functions which are not applicable are disabled.
Status panel
Figure 23. Status Panel
The Status panel of the screen provides visual indications of the connection status and the
names of the connected units. The following information is displayed:
Link 1 Indicator — Displays green when the receiver detects light on Link 1 (connecting
the Tx port of the transmitter to the Rx port of the receiver).
Link 2 Indicator — Displays green when an HDMI transmitter detects light on Link 2
(connecting the Tx port of an HDMI receiver to the Rx port of an HDMI transmitter).
NOTE: For transmission of HDMI video with HDCP content, two fibers are required.
