Plus Mode Transmission panel
Plus mode can support rates up to 1920x1200 @ 60Hz, with embedded audio, and is
HDCP compliant. Non-Plus mode supports rates up to 1600x1200 and 1080p, is HDCP
compliant, and does not contain embedded audio (analog audio is still supported).
In the Plus Mode Transmission panel, click the Enabled radio button to enable Plus mode.
To disable Plus mode, click the Disabled radio button.
NOTE: Default setting: Plus Mode is Enabled.
VGA Input Video Format panel
This setting selects RGB or YUV Input Video Format for the VGA input.
NOTE: Default setting: VGA Input Video Format is Auto.
Audio Input Selection panel
This panel sets the audio type for the VGA and HDMI inputs, or set them to Auto for
automatic selection.
For each input, select the desired audio input type from the Input drop-down list.

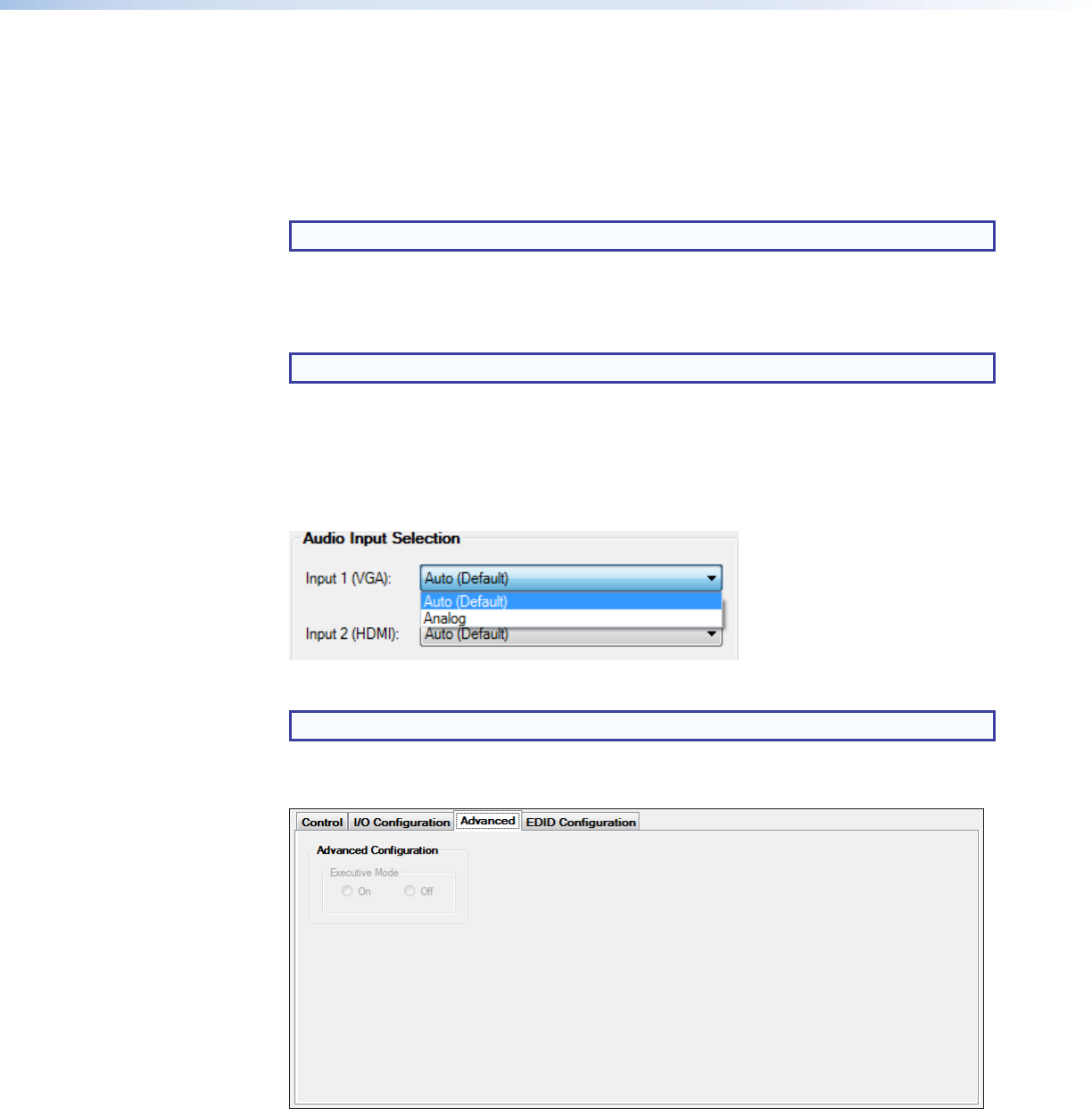

Figure 28. Audio Input 1 Options
NOTE: Default setting: Audio Input Selection is Auto for all inputs.
Advanced Tab
Figure 29. Advanced Tab
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 34
