Advanced Configuration panel
NOTE: This setting is not available for the FOX T UWP 302.
EDID Configuration Tab
EDID is a data structure used to communicate video display information, including native
resolution and vertical refresh rate requirements, to a source device. The source device then
outputs the optimal video format for the display based on the provided EDID data, ensuring
proper video image quality.
To access EDID options, click the EDID Configuration tab.

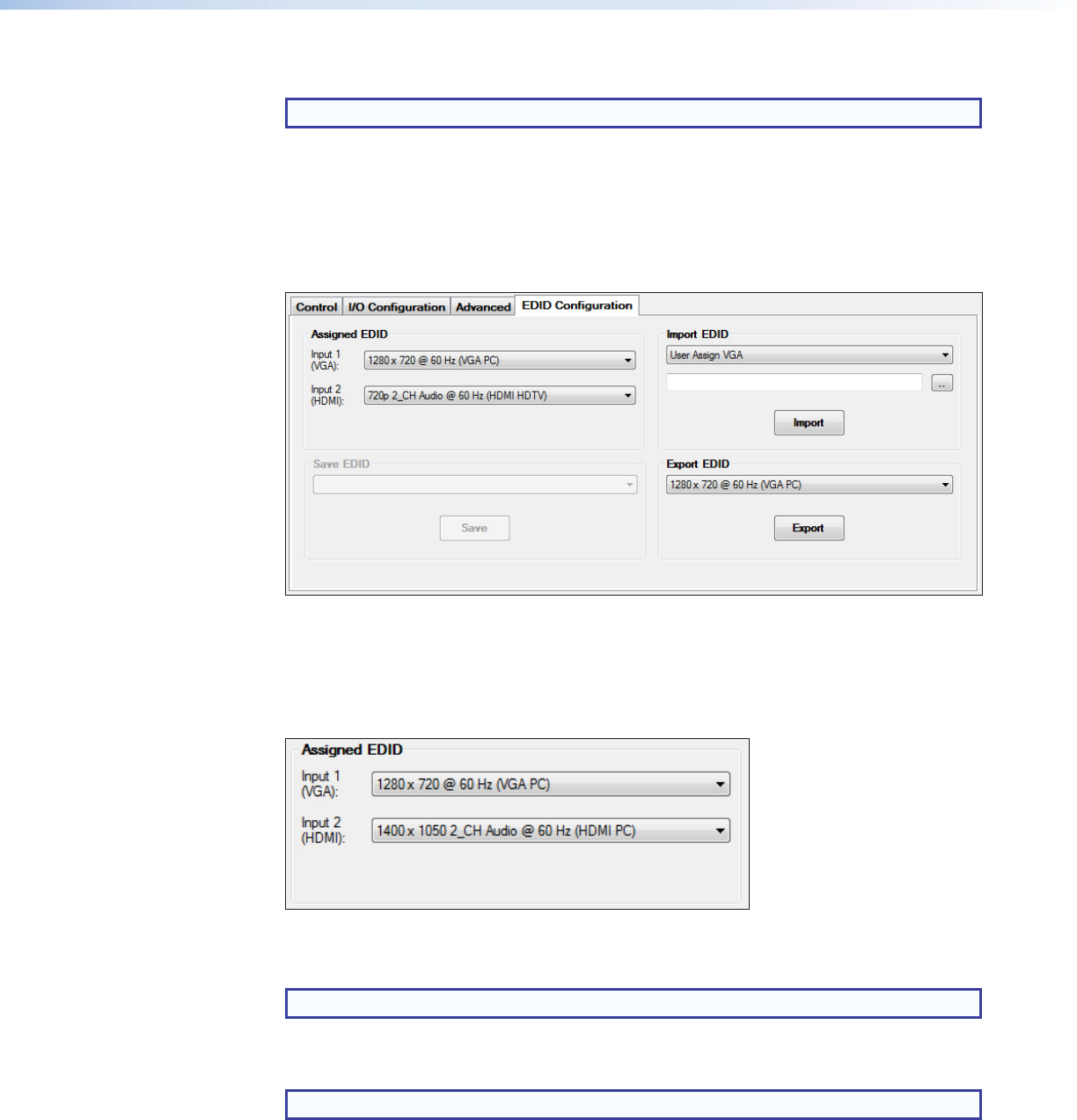

Figure 30. EDID Configuration Tab
Assigned EDID panel
This shows the current EDID configuration for each input. You can assign unique EDID for
any input.
Figure 31. Assigned EDID Panel
Choose the desired EDID from the drop-down list of the desired input.
NOTE: The default EDID is 720p for the HDMI input and 1280x720 for the VGA input.
Save EDID panel
NOTE: This setting is not available for the FOX T UWP 302.
FOX T UWP 302 Wallplate Transmitter • FOX Extenders Control Program 35
