IPI 100 Series, IPI 200 Series • Conguration and Control
Configuration and Control, cont’d
4-4

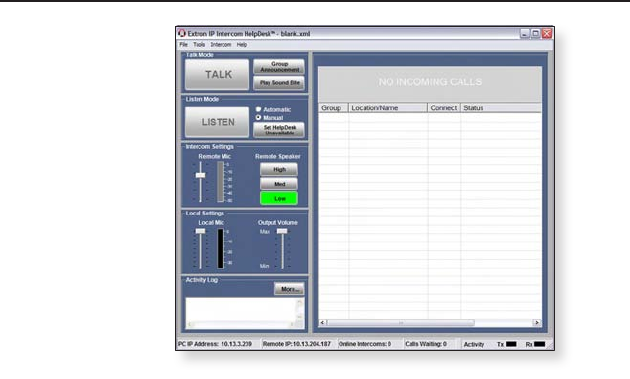

IP Intercom HelpDesk screen before configuration
After conguration, the software screen lists the devices to
be managed by the console, indicates their status (connected,
disconnected, communicating), and provides several tools.
Once units are congured, you can perform the following tasks:
• Initiate calls from any intercom to the console (the PC running
the software) or from the console to any intercom or group of
intercoms.
• Use the software to view information about intercom
connection and call status.
• Hear audio from a specic intercom by selecting that unit’s
name and clicking the Listen button.
• Make an announcement to several intercoms by clicking
the Group Announcement button. See “Making a group
announcement” on page 4-6 for group announcement details.
• Enable the console’s microphone and communicate with one
or more intercoms by clicking the Talk button.
