User Manual

3-17MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Operation
2. Press and release the Input 1 button (figure 3-27).
All LEDs but Input 1 and the Preset LED go out. The Input 1 LED and Preset
LED remain lit for 1 second to indicate the saved preset number and then go
out.
2
1
3
PRESET
2 4
1
3
4
3
4
OUTPUTS
INPUTS
Press and release the Input 1 button to select preset 1.
Preset 2 Preset 3
All LEDs except the saved preset's LED go out.
The LED for the saved preset and the Preset LED
remain lit for 1 second then go out.

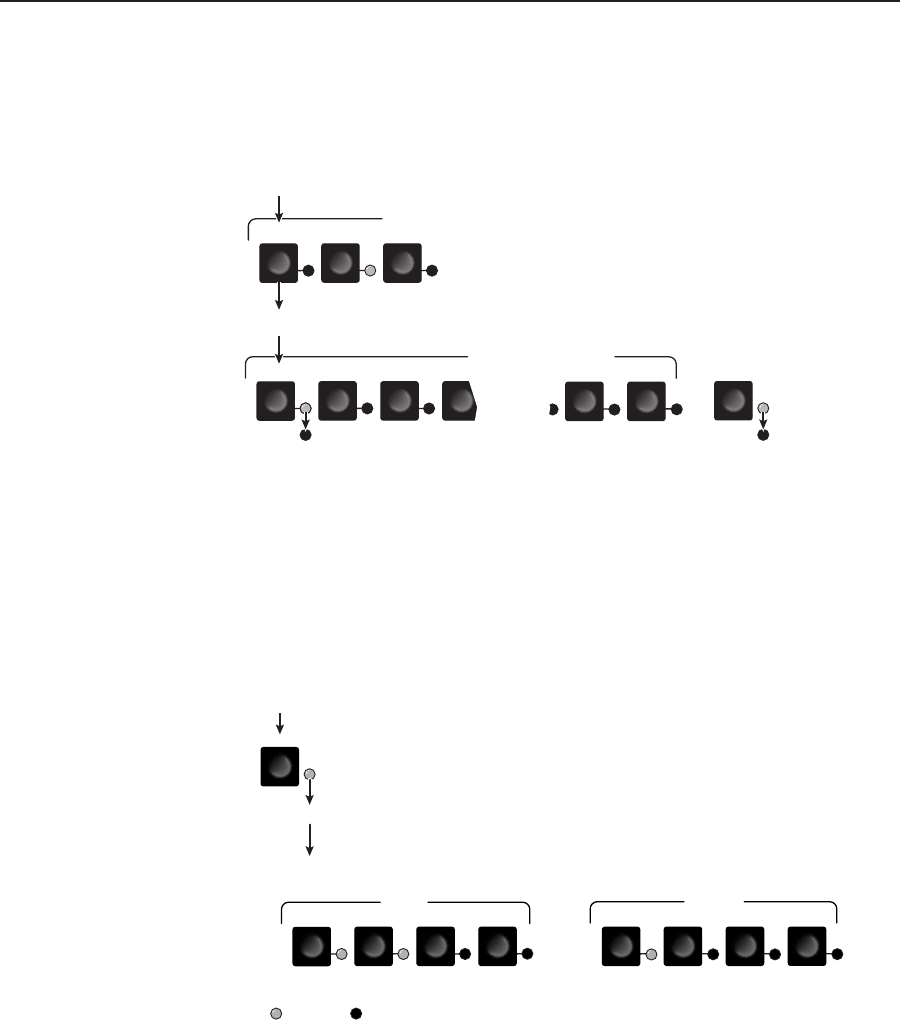

Figure 3-27 — Select the preset
Example 7: Recall a preset
The following steps show an example in which a preset is recalled to become the
current configuration. The example shows the front panel indications that result
from your actions.
1. Press and release the Preset button (figure 3-28).
PRESET
2
1
4
3
OUTPUTS
2 4
1
INPUTS
3
Press and release the button.
The LED lights to indicate Recall Preset mode.
= lit LED, = unlit LED.
Preset 2 Preset 3 Preset 4 Preset 5 Preset 6 Preset 7 Preset 8Preset 1
All input and output buttons with assigned presets light. If you then recall the configuration
from an unlit preset number, all ties will be cleared.
Figure 3-28 — Select Recall Preset mode, MVX 44
