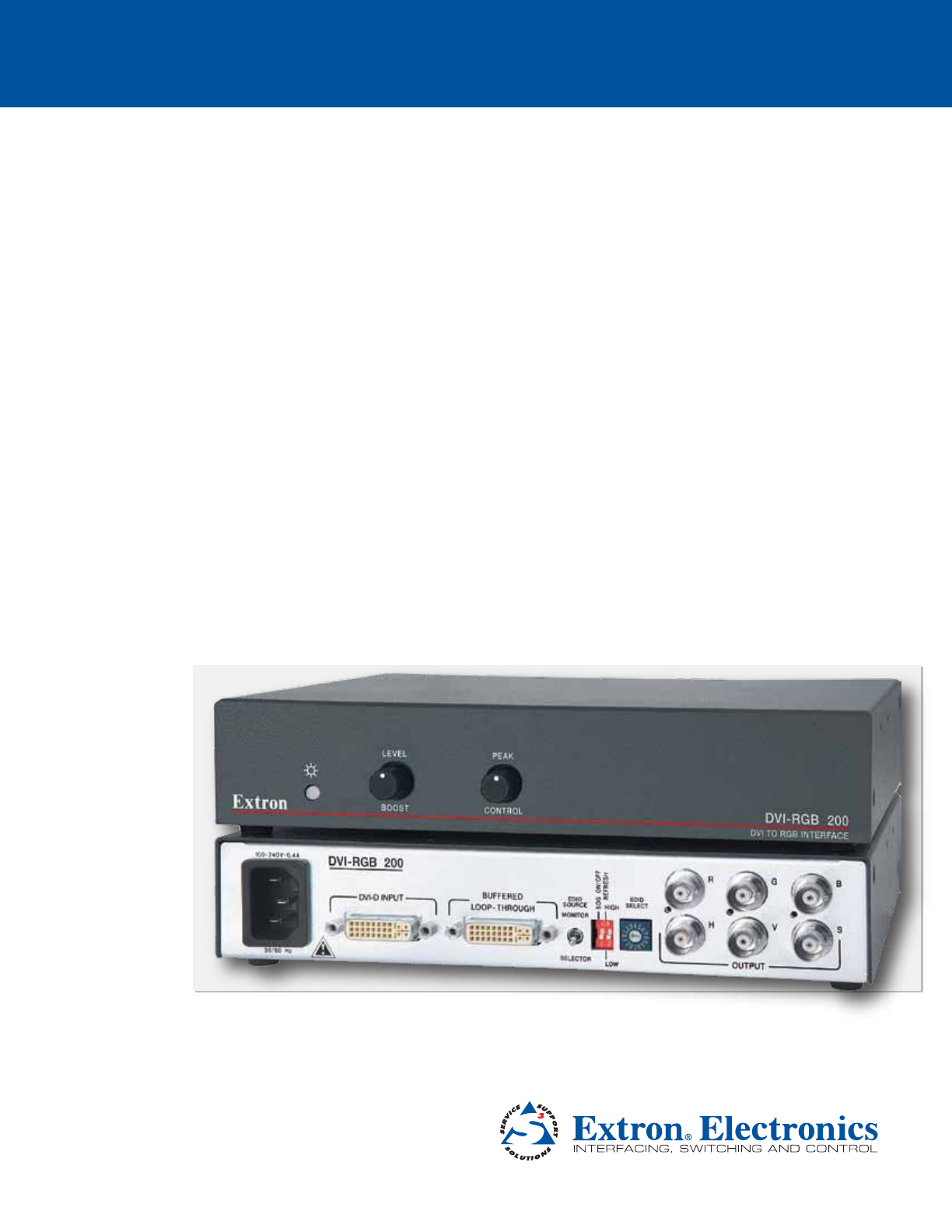

User Guide Interfaces DVI-RGB 200 DVI to Analog RGB Video Interface 68-1791-01 Rev.
Safety Instructions • English Warning This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment. Power sources • This equipment should be operated only from the power source indicated on the product. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.
FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
Contents Introduction............................................. 1 Installation and Operation...................... 2 Installation Overview......................................... 2 Mounting the Interface..................................... 2 Rear Panel Connections and Controls................ 3 DVI Connector Pin Assignments.................... 4 Front Panel Controls and Indicator.................... 5 Operation......................................................... 6 Capturing a User-recorded EDID...
DVI-RGB 200 • Contents iv
Introduction The Extron DVI-RGB 200 DVI to analog RGB video interface converts DVI digital video to analog RGB video. The interface accepts a single link of digital-only Digital Visual Interface (DVI-D) video from a computer, or other digital video source device, on a standard 29-pin female DVI-I connector. The interface outputs analog RGBHV, RGBS, or RGsB video on female BNC connectors.
Installation and Operation This sections details the installation and operation of the DVI-RGB 200, including: • Installation Overview • Mounting the Interface • Rear Panel Connections and Control • Front Panel Controls and Indicator • Operation Installation Overview Follow these steps to install and set up an Extron DVI-RGB 200 for operation: 1 Turn off all of the equipment. Ensure that the video sources and the output display are all turned off and disconnected from the power source.
100-240V 0.4A DVI-RGB 200 DVI-DINPUT EDID SOURCE BUFFERED LOOP-THROUGH SOG ON/OFF REFRESH Rear Panel Connections and Controls MONITOR SELECTOR 50/60 Hz 7 1 2 HIGH 4 EDID SELECT R G B H V S OUTPUT LOW 6 5 3 Figure 2. DVI-RGB 200 Rear Panel a Input connector — Connect a single link of direct digital video to this 29-pin DVI-I connector (figure 2) using the included cable.
f DIP switches — SOG (Sync on Green) On/Off switch — Set this switch to the On (up) position to enable SOG for RGsB video. Set this switch to the Off (down) position to disable SOG for RGBS or RGBHV video. Refresh switch — If the EDID Source switch (d) is in the Selector position and the EDID select switch (e) is in position 1 through F position, set this switch either up or down to select the refresh rate of the selected output (see table 1).
Front Panel Controls and Indicator 8 9 10 LEVEL PEAK BOOST CONTROL DVI-RGB 200 DVI TO RGB CONVERTER Figure 4. DVI-RGB 200 Front Panel h Power LED — The two-tone Power LED lights amber or green: • i Amber when the DVI-RGB 200 is receiving power but no DVI input signal is applied. • Green when the DVI-RGB 200 is receiving power and a DVI input is present. Level Boost control — The Level Boost control alters the brightness of the picture on the RGB output.
Operation After the DVI-RGB 200 and its connected devices are powered up, the system is fully operational. If you encounter any problems, verify that the cables are routed and connected properly. NOTES: • High-bandwidth Digital Content Protection (HDCP) is an encryption method that protects copyrighted digital entertainment material that uses DVI video. The DVI-RGB 200 cannot respond to the HDCP decryption key. When the DVI input is HDCP encrypted, the RGB output of the DVI-RGB 200 is blank.
Reference Information This section discusses the specifications, part numbers, and accessories for the DVI-RGB 200. Topics that are covered, include: • Specifications • Part Numbers • Mounting the Interface Specifications Video NOTES: • The DVI-RGB 200 converts a single link DVI signal to an analog RGB signal. • Using an adaptor (the Extron HDMI to DVI-D adapter, part #26-616-01), the DVI-RGB 200 can accept HDMI signals.
Sync Output type ����������������������������������� Output level ����������������������������������� Output impedance ������������������������� Polarity ������������������������������������������� RGBHV, RGBS, RGsB TTL (5 Vp-p, unterminated) 75 ohms Positive or negative (follows input) General Power �������������������������������������������� 100 VAC to 240 VAC, 50-60 Hz, 12 watts, internal Temperature/humidity �������������������� Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Op
Part Numbers Interface Part Numbers These items are included in each order for a DVI-RGB 200: Interface and included parts Part number DVI-RGB 200 60-1064-01 IEC power cord Tweeker (small screwdriver) DVI-RGB 200 Setup Guide Mounting Accessories Mounting Kit Part Number RSU 126 6-inch deep 1U universal rack shelf kit 60-190-10 RSB 126 6-inch deep 1U basic rack shelf 60-604-11 RSU 129 9.5-inch deep 1U universal rack shelf kit 60-190-01 RSB 129 9.
Mounting the Interface CAUTION: Installation and service must be performed by authorized personnel only. The 1U high, half rack width DVI-RGB 200 can be placed on a tabletop, mounted on a rack shelf, or mounted under a desk or tabletop. Tabletop Use Affix the four included rubber feet to the bottom of the unit and place it in any convenient location.
Rack shelf mounting instructions The unit can be mounted in the front or the rear of the rack. 1. Remove the feet from the bottom of the unit if installed. 2. Mount the unit on the rack shelf, using two 4-40 x 3/16-inch screws in opposite (diagonal) corners to secure it to the shelf (figure 5). 6" Deep Rack Shelf 1/2 Rack Width Front False Faceplate Front false faceplate uses 2 screws. (2) 4-40 x 3/16" Screws Use 2 mounting holes on opposite corners. Figure 5. Mounting the Unit on a 3-inch Rack Shelf 3.
Furniture Mounting Under-Furniture Mounting The unit can be mounted under a horizontal surface using an optional MBU 125 under-desk mounting kit (part #70-077-01). Mount the unit under a desk or table as follows: 1. Remove feet from the bottom of the unit if installed. 2. Secure the under-desk mounting brackets to the interface with the four machine screws provided in the mounting kit (figure 7). Figure 7. Under-desk Mounting 3.
Through-furniture mounting The interface can be mounted through a desk or other furniture using an optional Extron MBD 129 through-desk mounting kit (part #70-077-02). Mount the unit through a desk or table as follows (figure 8): Figure 8. Through-desk Mounting 1. Loosely attach the mounting brackets to the interface using the four machine screws and washers supplied with the mounting kit. 2. Hold the interface against the inside of the surface through which it will be mounted.
Extron® Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase.
