Furniture Mounting
Under-Furniture Mounting
The unit can be mounted under a horizontal surface using an optional MBU 125 under-desk
mounting kit (part #70-077-01). Mount the unit under a desk or table as follows:
1. Remove feet from the bottom of the unit if installed.
2. Secure the under-desk mounting brackets to the interface with the four machine screws
provided in the mounting kit (figure 7).

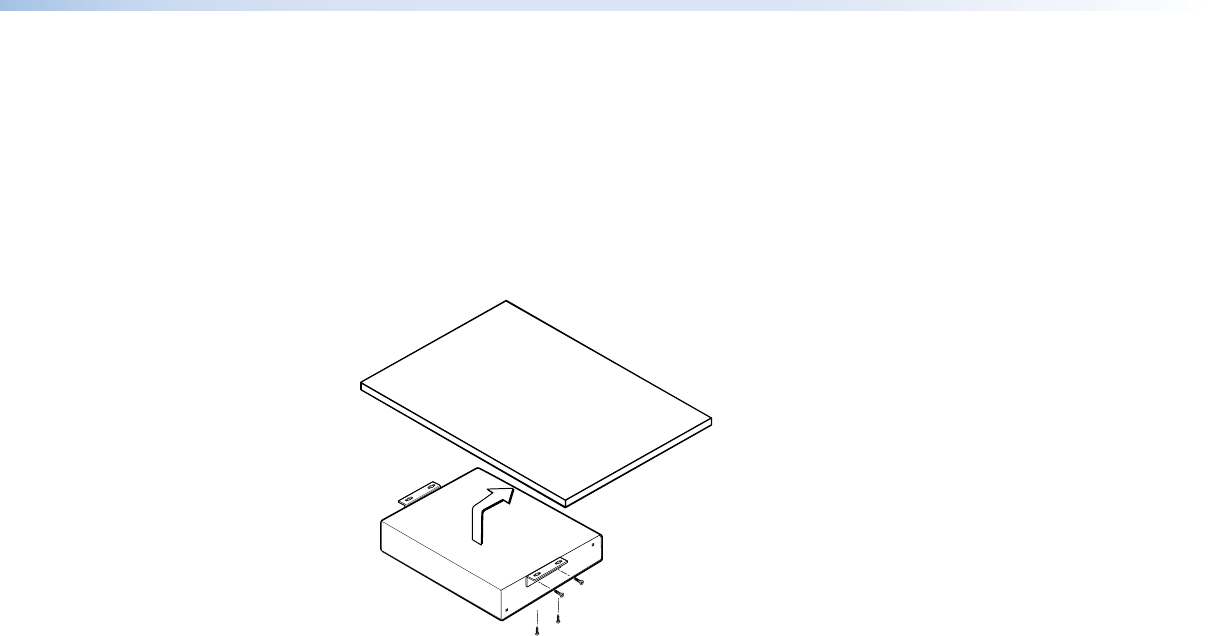

Figure 7. Under-desk Mounting
3. Hold the interface with attached brackets against the underside of the desk or other
furniture. Mark the location of holes for screws on the desk.
4. Drill 1/4-inch (6.4 mm) deep, 3/32-inch (2 mm) diameter pilot holes in the table or desk
at the marked screw locations from the underside or inside (the concealed side) of the
furniture, where the interface will be located.
5. Insert the four wood screws into the pilot holes. Fasten each screw into the installation
surface until just less than 1/4 inch of the screw head protrudes.
6. Align the installed screws with the slots in the mounting brackets, and place the
interface against the surface, with the screws through the bracket slots.
7. Slide the interface slightly forward or back, then tighten all four screws to fasten it in
place.
DVI-RGB 200 • Reference Information 12
