MLC 104 Plus Series • Software Setup
Software Setup, cont’d
3-10

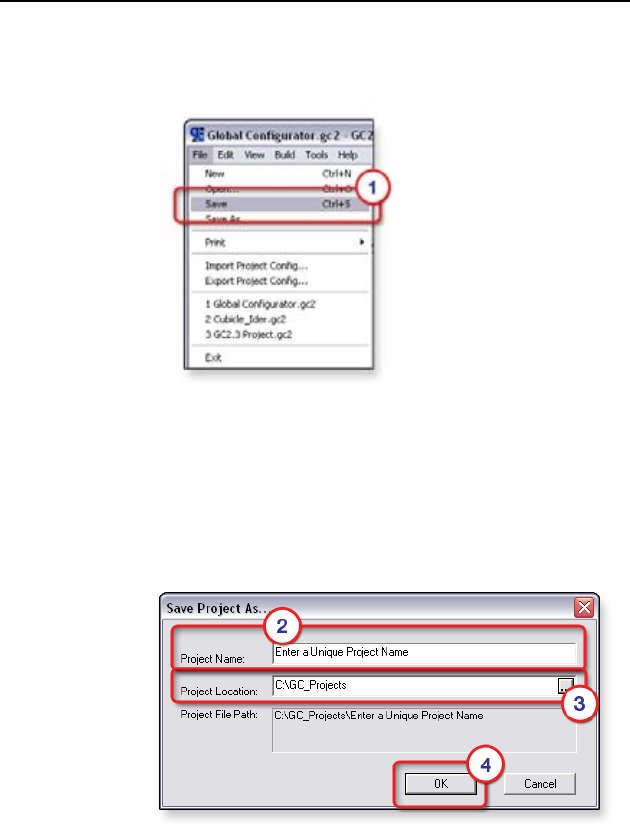

Step five: save the new Global Configurator file
To save the new GC project le:
1. Click File > Save - or - click the Save icon.
If the le has not previously been saved, the Save As dialog box
opens.
2. Enter a unique name in the Project Name eld.
3. Click the browse button to browse to the desired le
location.
4. Click OK.
