Data Sheet

RB-Ezr-04
EZ-B V4 WiFi Robot Controller
The EZ-B Wifi Controller can be purchased separately to start customizing your robot from EZ-Bits or
when creating a robot from scratch. This is the brains of your EZ-Robot. With the electronics protected
by a stylish plastic shell, the EZ-B v4 clips into your EZ-Robot Revolution chassis or custom robot.
This controller is easily programmed over Wi-Fi from the EZ-Builder Software.
The EZ-B v4 boasts 200mhz of 32-bit Processors (ARM Cortex M3 & Microchip PIC32) , 5 Volt
Tolerant I/O, Energy Efficient Digital Switching Power Supply, Wi-Fi Connectivity with security,
Embedded Web Server, Amplified Digital Audio with Speaker, 3 i2c ports, UART, 24 Multi-use
Servo/Digital/Serial ports, 73 Servos (Dynamixel & PWM), 8 Analog ports, and Integrated Video... All
packed in a mini 2.1" x 2.2" size!
The EZ-B is controlled from either the graphical EZ-Builder Software on your PC or mobile device
without needing to program. The less time you spend fiddling with compilers, hardware programmers
and debuggers, the more time you spend building and designing robotic projects. Do those words
confuse you? Compiler? Microcontroller? If so, then the EZ-B is for you!
EZ-B v4 Wi-Fi Robot Controller

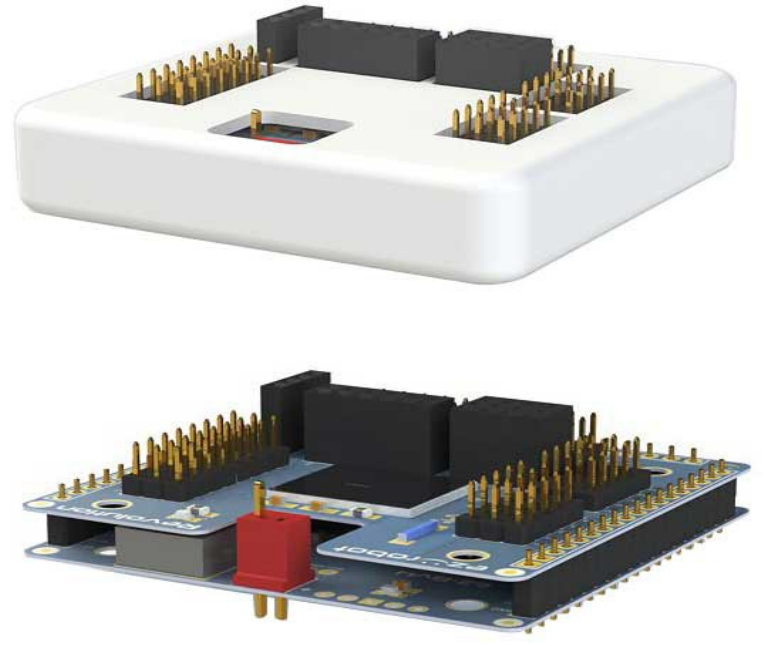

The EZ-B v4 is the World's most powerful robot controller... It's a brain for your robot. The EZ-B v4
scales for beginner and advanced users. The EZ-B is two PCB's sandwiched together in a compact 2x2
inch package. For protection, the speaker and electronics are enclosed within a stylish white plastic
shell with a speaker chamber for clear enhanced audio. For advanced users, the EZ-B may be removed
from its casing and mounted directly in your custom robot.
