Spec Sheet/ Dimensions (PDF)

Rev. 07/11

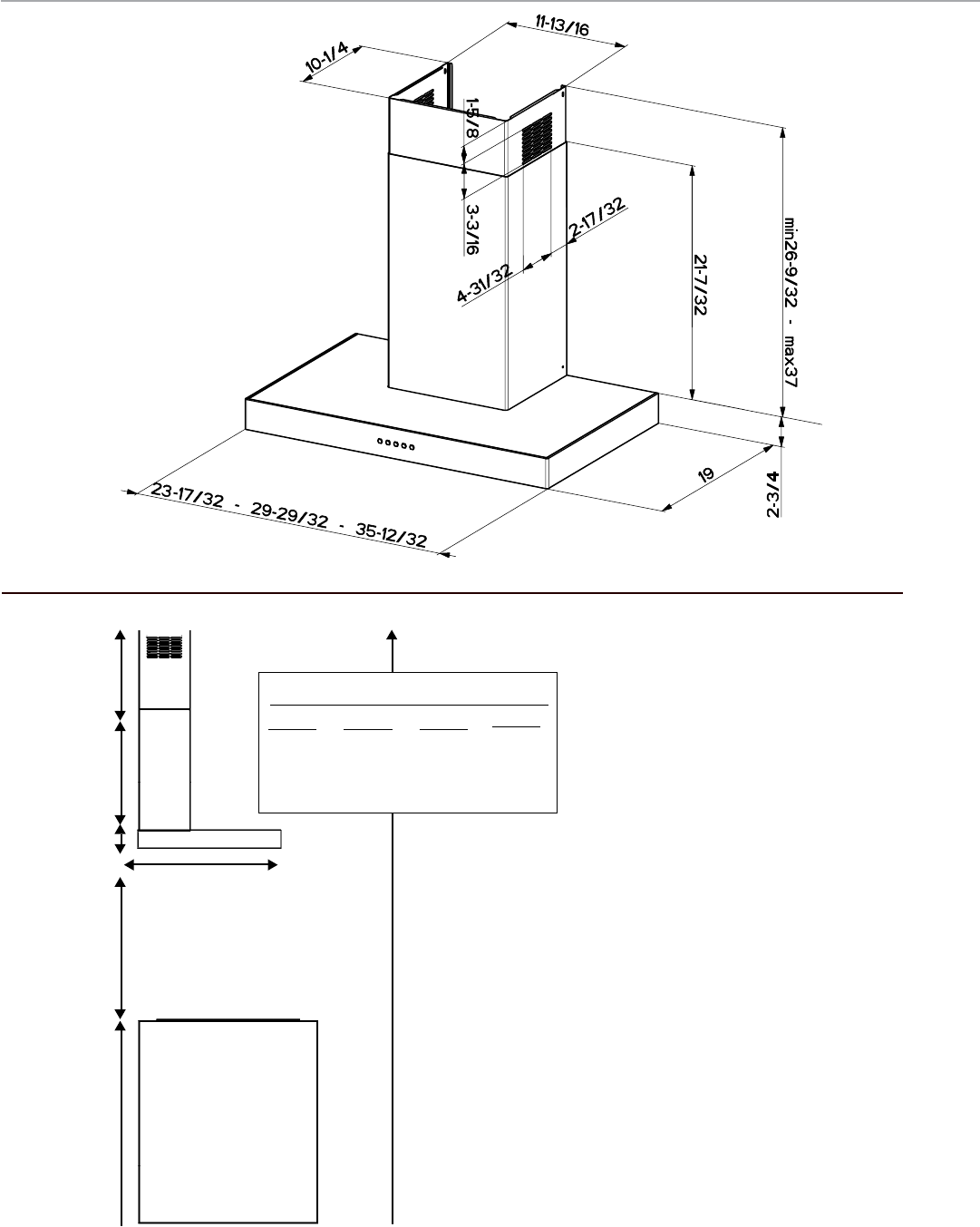

Dimensional Diagrams & Electrical Knockouts
WARNING! Product specifications are subject to change without notification. Consult the installation instructions before you begin installing this rangehood.
Make your ductrun as
straight and short as
possible. The ductrun
should not exceed 35
equivalent feet if ducted
with the required mini-
mum of 6” round duct.
Count 4 angles as 3
feet, 9 elbows as 5 feet,
and 90ºat elbows as 12
feet.
For best results, use
no more than three 9
elbows. Make sure that
there is a minimum of
24” of straight duct
between elbows if more
than one is used. Do
not install two elbows
together. If you must
elbow right away, do
it as far away from the
hoods exhaust opening
as possible.
Pre-Planning Your Installation - Important: Consult the installation instructions before you begin installing this rangehood.
7 1/4” min
16 10/16 max
21 5/16”
2
7/16”
36”
x
also consult cooktop
manufacturer's recommendation
upper
chimney
lower
chimney
canopy
x = distance from hood to cooktop
(varies depending on installation)
min - 24”, suggested max - 30”
cabinet base
19
For shorter ceilings,
have the chimney cover(s)
cut at a sheet metal
shop. For higher ceiling
installations, the High
Ceiling Chimney Kit
includes a new 40” upper
chimney which would
replace the upper chimney
that came with the hood.
min & max ceiling height examples
x = 28"
min
7'
11"
max
8'
8 3/8"
x = 26"
min
7'
9"
max
8'
6 3/8"
x = 24"
min
7'
7"
max
8'
4 3/8"
3
x = 30"
min
8'
1"
max
8'
10 3/8"
