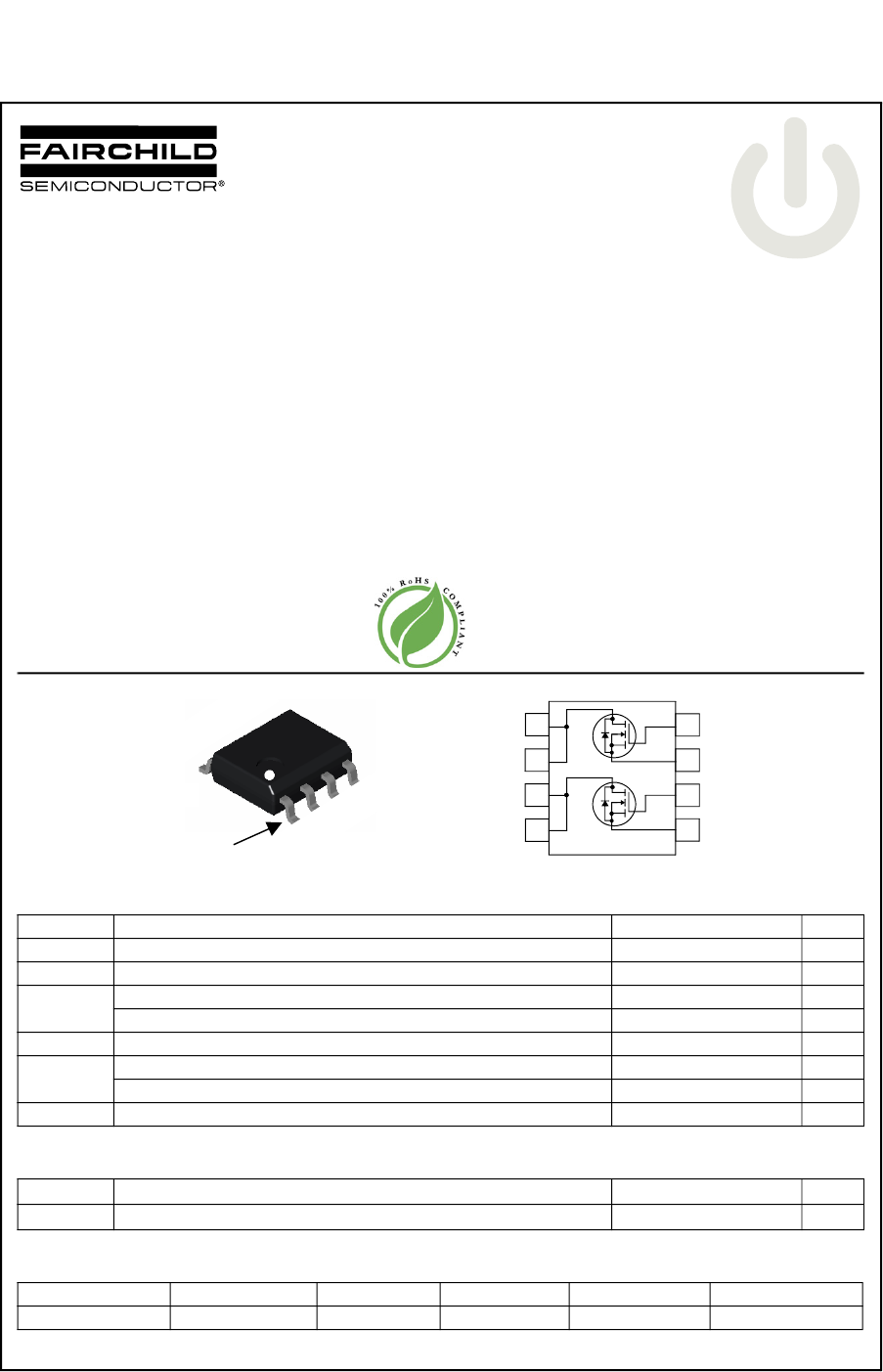

FDS8984_F085 N-Channel PowerTrench

MOSFET

FDS8984_F085 Rev. A

www.fairchildsemi.com1

FDS8984_F085

N-Channel PowerTrench

MOSFET

30V, 7A, 23mΩ

General Description

This N-Channel MOSFET has been designed specifically to

improve the overall efficiency of DC/DC converters using

either synchronous or conventional switching PWM

controllers. It has been optimized for low gate charge, low

DS(ON)

and fast switching speed.

Features

 Max r

DS(on)

= 23mΩ, V

= 10V, I

= 7A

 Max r

DS(on)

= 30mΩ, V

= 4.5V, I

= 6A

 Low gate charge

 100% R

tested



Qualified to AEC Q101

MOSFET Maximum Ratings

= 25°C unless otherwise noted

Thermal Characteristics

Package Marking and Ordering Information

Symbol Parameter Ratings Units

Drain to Source Voltage 30 V

Gate to Source Voltage ±20 V

Drain Current Continuous (Note 1a) 7 A

Pulsed 30 A

Single Pulse Avalache Energy (Note 2) 32 mJ

Power Dissipation for Single Operation 1.6 W

Derate above 25°C 13 mW/°C

, T

STG

Operating and Storage Temperature -55 to 150 °C

θJA

Thermal Resistance, Junction-to-Ambient (Note 1a) 78 °C/W

θJC

Thermal Resistance, Junction-to-Case (Note 1) 40 °C/W

Device Marking Device Package Reel Size Tape Width Quantity

FDS8984 FDS8984_F085 SO-8 330mm 12mm 2500 units

SO-8

Pin 1

SO-8

 RoHS Compliant
