FODM611 — High Noise Immunity, 5V, 10Mbit/sec Logic Gate Output (Open Collector) Optocoupler

FODM611 Rev. 1.0.3

May 2010

FODM611

High Noise Immunity, 5V, 10Mbit/sec Logic Gate Output

(Open Collector) Optocoupler

Features

■

High Noise Immunity characterized by common mode

transient immunity (CMTi)

– 20kV/µs Minimum CMTi

■

High Speed

– 10Mbit/sec Date Rate (NRZ)

– 100ns max. Propagation Delay

– 35ns max. Pulse Width Distortion

– 40ns max. Propagation Delay Skew

■

-40 to +85°C temperature range

■

Safety and regulatory approvals

– UL1577, 3750 VAC

RMS

for 1 min.

– IEC60747-5-2 (pending approval)

Applications

■

Microprocessor system interface

– SPI, I

■

Industrial fieldbus communications

– DeviceNet, CAN, RS485

■

Programmable logic control

■

Isolated data acquisition system

■

Voltage level translator

■

Isolating MOSFET/IGBT gate drivers

Description

The FODM611 is a 5V high-speed logic gate output

(open collector) optocoupler, which supports isolated

communications allowing digital signals to communicate

between systems without conducting ground loops or

coplanar packaging technology, Optoplanar

, and

optimized IC design to achieve high noise immunity,

characterized by high common mode transient immunity

specifications.

This optocoupler consists of an AlGaAS LED at the

input, optically coupled to a high speed integrated photo-

detector logic gate. The output of the detector IC is an

open collector schottky-clamped transistor. The coupled

parameters are guaranteed over the wide temperature

range of -40°C to +85°C. A maximum input signal of

5mA will provide a minimum output sink current of 13mA

(fan out of 8).

Related Resources

■

www.fairchildsemi.com/products/opto/

■

www.fairchildsemi.com/pf/FO/FODM8061.html

■

www.fairchildsemi.com/pf/FO/FODM8071.html

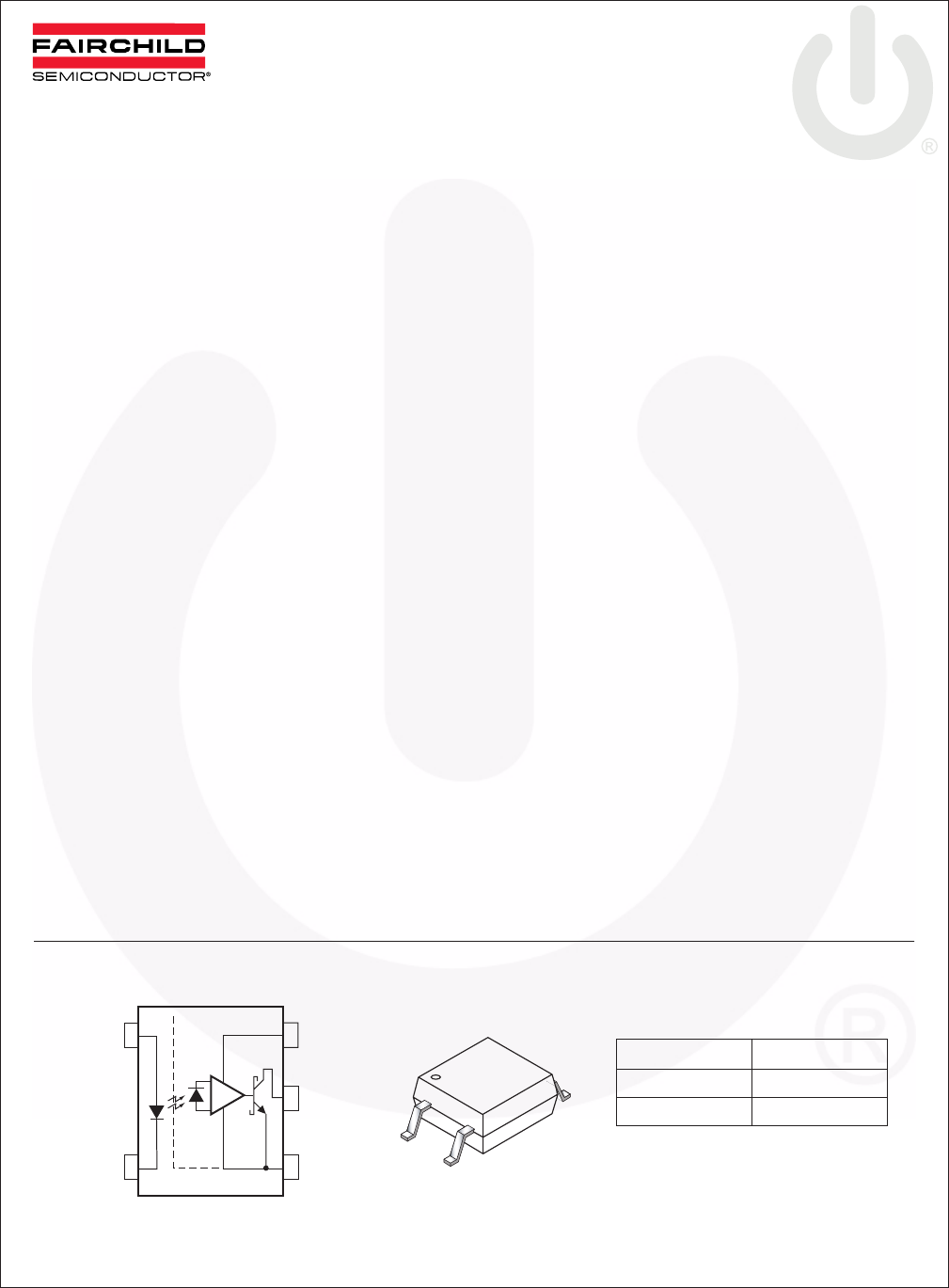

Functional Schematic

3 4

GND

ANODE

CATHODE

Truth Table

LED Output

Off High

On Low

hazardous voltages. It utilizes Fairchild’s proprietary
