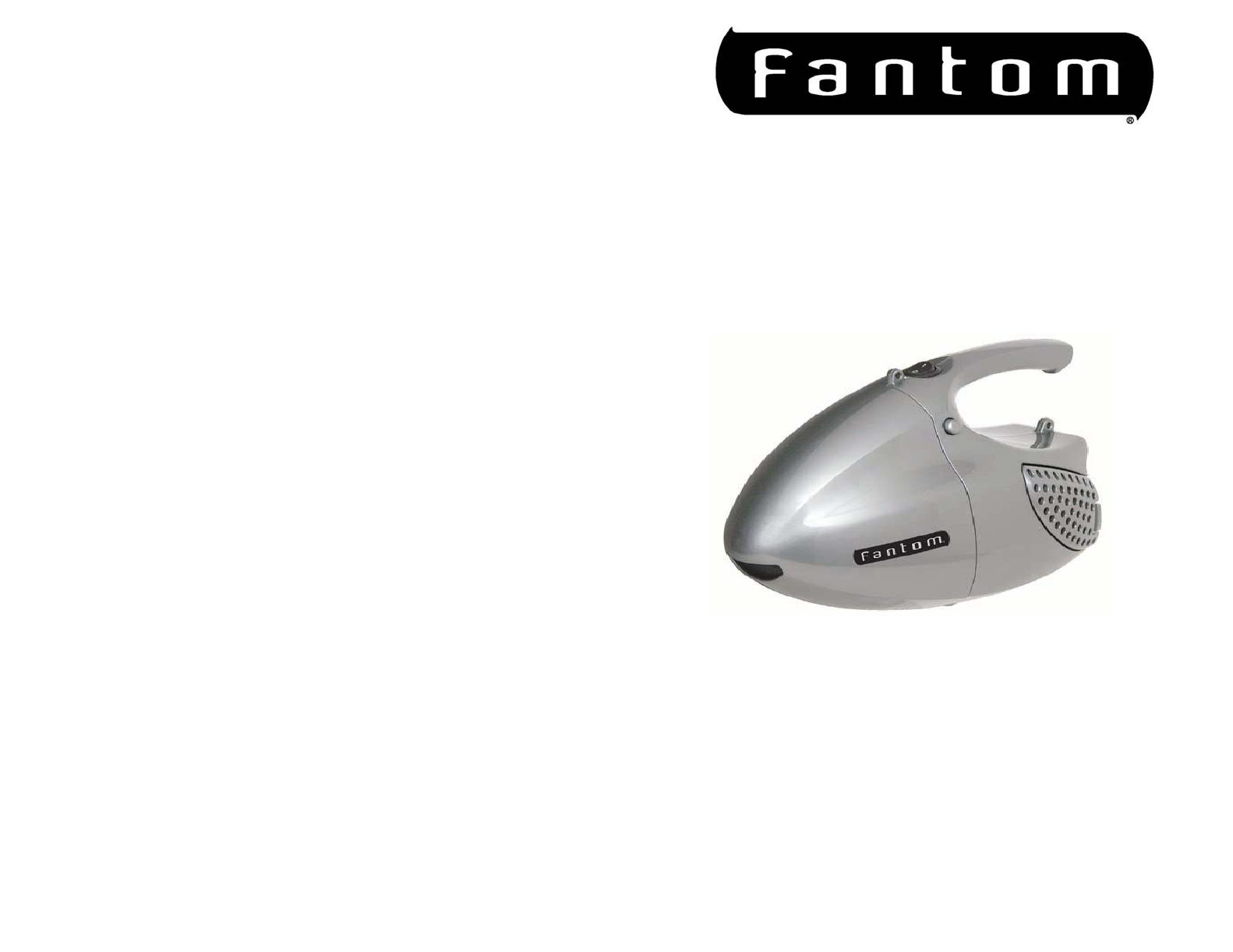

Hand Vacuum OWNER’S MANUAL Model FM405 120V., 60Hz., 6.67 Amps FANTOM 94 MAIN Mill Street, Door 16 Plattsburgh, NY 12901 Tel.: 1-800-275-9251 www.fantom.
IMPORTANT SAFETY INSTRUCTIONS Model FM405 When using your FANTOM Hand Vacuum, basic safety precautions should always be observed, including the following: 1. THREE (3) YEAR LIMITED WARRANTY FANTOM warrants this product to be free from defects in material and workmanship for a period of three (3) years from the date of the original purchase, when utilized for normal household use, subject to the following conditions, exclusions and exceptions.
TROUBLE SHOOTING GUIDE GETTING TO KNOW YOUR HAND VACUUM PROBLEM HAND VACUUM WILL NOT OPERATE 1. 2. 3. 4. POSSIBLE REASON POSSIBLE SOLUTION Power cord not firmly plugged into outlet. No power in wall outlet. Needs servicing. Thermostat has tripped. 1. 2. 3. 4. 1. HAND VACUUM WILL NOT PICK-UP OR SUCTION POWER IS WEAK DUST ESCAPING FROM HAND VACUUM Debris Screen 1. 2. 3. 1. 2. 3. Dust cup is full. Unit clogged. HEPA Dust Cup Filter needs cleaning or replacing. Dust cup is full.
OPERATING INSTRUCTIONS cont. Changing & Cleaning the Exhaust Filters Please Note: The HEPA Dust Cup Filter is washable. It should, however, be replaced every six (6) months to ensure peak performance of your vacuum. The Exhaust filters are washable. They should however be replaced every six (6) months to ensure peak performance of your vacuum. Important: Make sure that ALL filters are completely dry before re-installing back in the hand vacuum.
OPERATING INSTRUCTIONS cont. OPERATING INSTRUCTIONS 4. To use the flexible hose, push the end of the hose into the suction hole, then attach the desired accessory to the other end of the flexible hose, as shown below. Warning: Always unplug from electrical outlet before opening the dust cup (container). Note: HEPA dust cup filter must be used when operating the hand vacuum. Using The Unit As A Hand Vacuum 1. To open the dust cup (container), push the dust cup release button and pull out the dust cup.
