Digital Camera Datasheet

Rugged. Specifically designed for test ranges and

other harsh environments. 18-gauge steel. Dustproof.

Rainproof. Membrane-touch control buttons. Military-

style connectors. Lens shield.

Self-Contained. Just use standard D-cell batteries

and forget about battery belts or power generators.

Built-in screen with glare shield. CompactFlash

download. Ideal for field use.

Fast. Record up to 16,000 frames per second with a

20X electronic shutter.

Connected. Communicate between Ranger and your

laptop through the USB-2.0 port. IRIG-B is standard.

Range-Ready

High-Speed

Digital Camera

Ranger Solves Tough Problems in Tough Environments

RANGER

The

RANGER

The

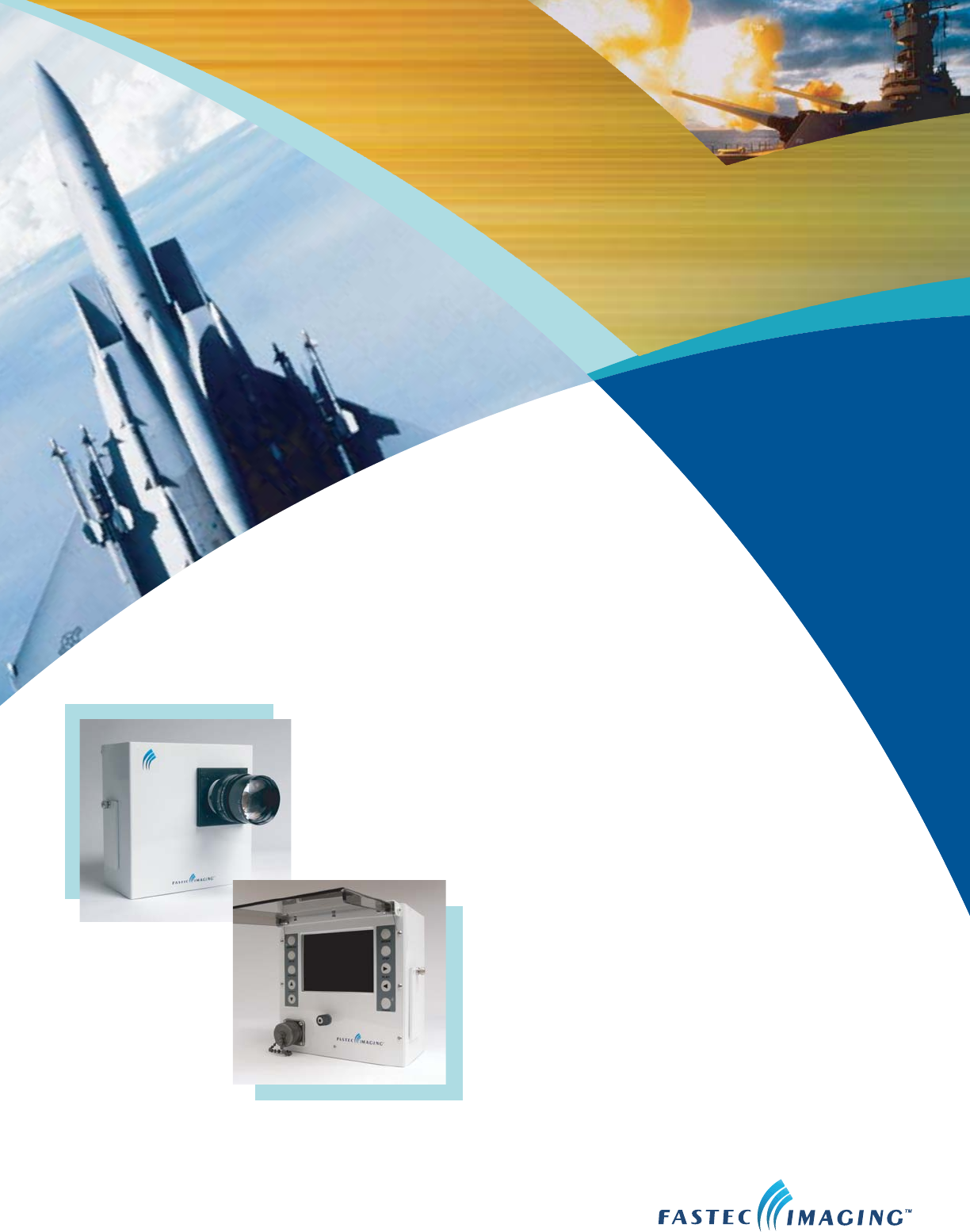

PAGE 1
The RANGER Range-Ready High-Speed Digital Camera Rugged. Specifically designed for test ranges and other harsh environments. 18-gauge steel. Dustproof. Rainproof. Membrane-touch control buttons. Militarystyle connectors. Lens shield. Self-Contained. Just use standard D-cell batteries and forget about battery belts or power generators. Built-in screen with glare shield. CompactFlash download. Ideal for field use. Fast. Record up to 16,000 frames per second with a 20X electronic shutter. Connected.
PAGE 2
The RANGER SPECIFICATIONS MODELS Ranger 250, Ranger 500, Ranger 1000 and Ranger HR. SENSOR 1280 x 1024 CMOS array, monochrome or color, 8-bit pixel resolution in monochrome, 24-bit pixel resolution in color. SHUTTER SPEED RECORDING MODES 1x, 2x, 3x, 4x, 5x, 10x and 20x the recording rate. Manual Begins recording when the record button is pushed. Continues to record and store images in memory until the stop button is pushed. Trigger Begins recording when the record button is pushed.
