Installation Guide

(E) 9/14

ASSEMBLY INSTRUCTIONS FOR WB1330

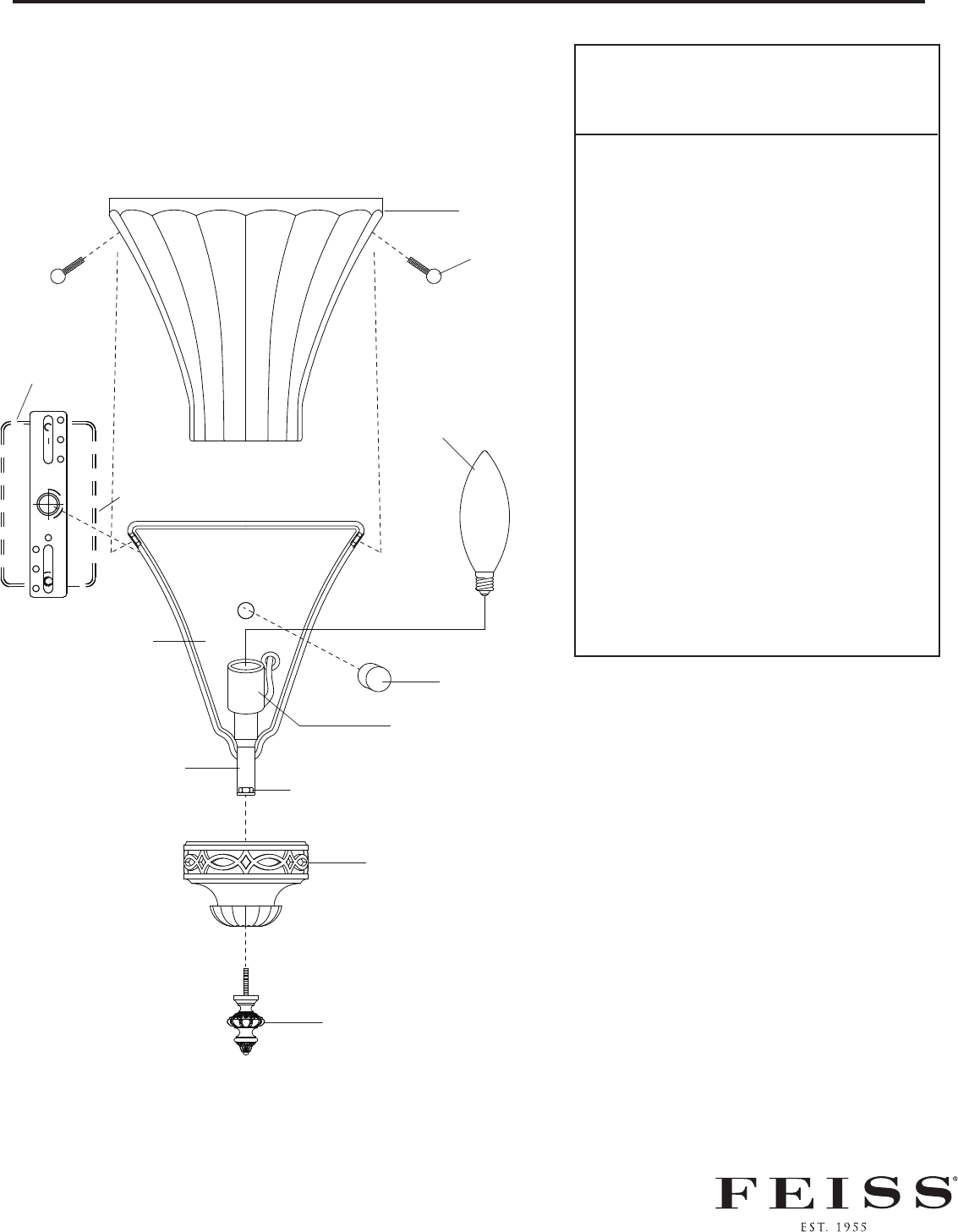

Bulb

(not included)

Glass Shade

Socket

Cap Screw

Cap Nut

IMPORTANT

TURN OFF THE POWER AT THE MAIN FUSE

OR CIRCUIT BREAKER BOX

BEFORE STARTING INSTALLATION

Decorative Cup

Finial

Fixture Plate

Outlet Box

Carefully unpack and identify all parts

before assembly. Bulb is not included.

NOTE: This wall xture requires a 2" x

4" outlet box.

1. Follow enclosed “Multiple Standard

Installation Instructions” for electrical

and xture installation onto wall outlet

box.

2. Install the decorative cup onto the

bracket and secure it in place by

screwing nial into the hex nut.

3. Sit glass shade inside of decorative cup.

4. Install glass shade onto xture plate by

inserting ball cap screws into holes at

both sides of glass shade and locking

with hex nut from other side. Do not

over tighten.

5. Install light bulb (not included). See

relamping label at socket area for type

and maximum allowed wattage.

Hex Nut

Bracket

PAGE 1
ASSEMBLY INSTRUCTIONS FOR WB1330 (E) 9/14 IMPORTANT TURN OFF THE POWER AT THE MAIN FUSE OR CIRCUIT BREAKER BOX BEFORE STARTING INSTALLATION Carefully unpack and identify all parts before assembly. Bulb is not included. Glass Shade Cap Screw Outlet Box Bulb (not included) NOTE: This wall fixture requires a 2" x 4" outlet box. 1. Follow enclosed “Multiple Standard Installation Instructions” for electrical and fixture installation onto wall outlet box. 2.
PAGE 2
INSTRUCTIONS D’ASSEMBLAGE POUR WB1330 (F) 9/14 IMPORTANT: COUPER L’ALIMENTATION ÉLECTRIQUE AU BOÎTIER CENTRAL (DISJONCTEUR OU FUSIBLES), AVANT DE COMMENCER L’INSTALLATION Abat-jour Vís-capuchon Déballez délicatement et identifiez toutes les pièces, avant de commencer l’assemblage. Le ampoule n’est pas incluses. NOTE: Ce luminaire de mur nécessite une boîte de sortie 2 "x 4". Boîte de sortie Ampoule (non incluse) 1.
PAGE 3
INSTRUCCIONES DE MONTAJE PARA WB1330 Pantalla TornilloCapuchón (S) 9/14 IMPORTANTE CORTE LA ALIMENTACIÓN ELÉCTRICA, CERRANDO EL INTERRUPTOR CENTRAL O QUITANDO EL FUSIBLE DEL PANEL CENTRAL, ANTES DE COMENZAR EL ENSAMBLADO Desempaque cuidadosamente e identifique todas las piezas, antes de proceder con el ensamblado. La bombilla no es incluida. NOTA: Este aparato de pared requiere una caja de electrica de 2 "x 4". Caja Electrica Bombilla (no incluida) 1.
