SM -
Stabilized Metal Film
MELF Resistor
Specifications Per
•
IEC 60115-1 60115-2
•
CECC 40101
•
DIN 44061
Features
•
SMD enabled structure with excellent solderability
•
Conformal coating against humidity
•
5% is 3-band coded, 2% and under is 4-band coded
•
RoHS / REACH Compliant

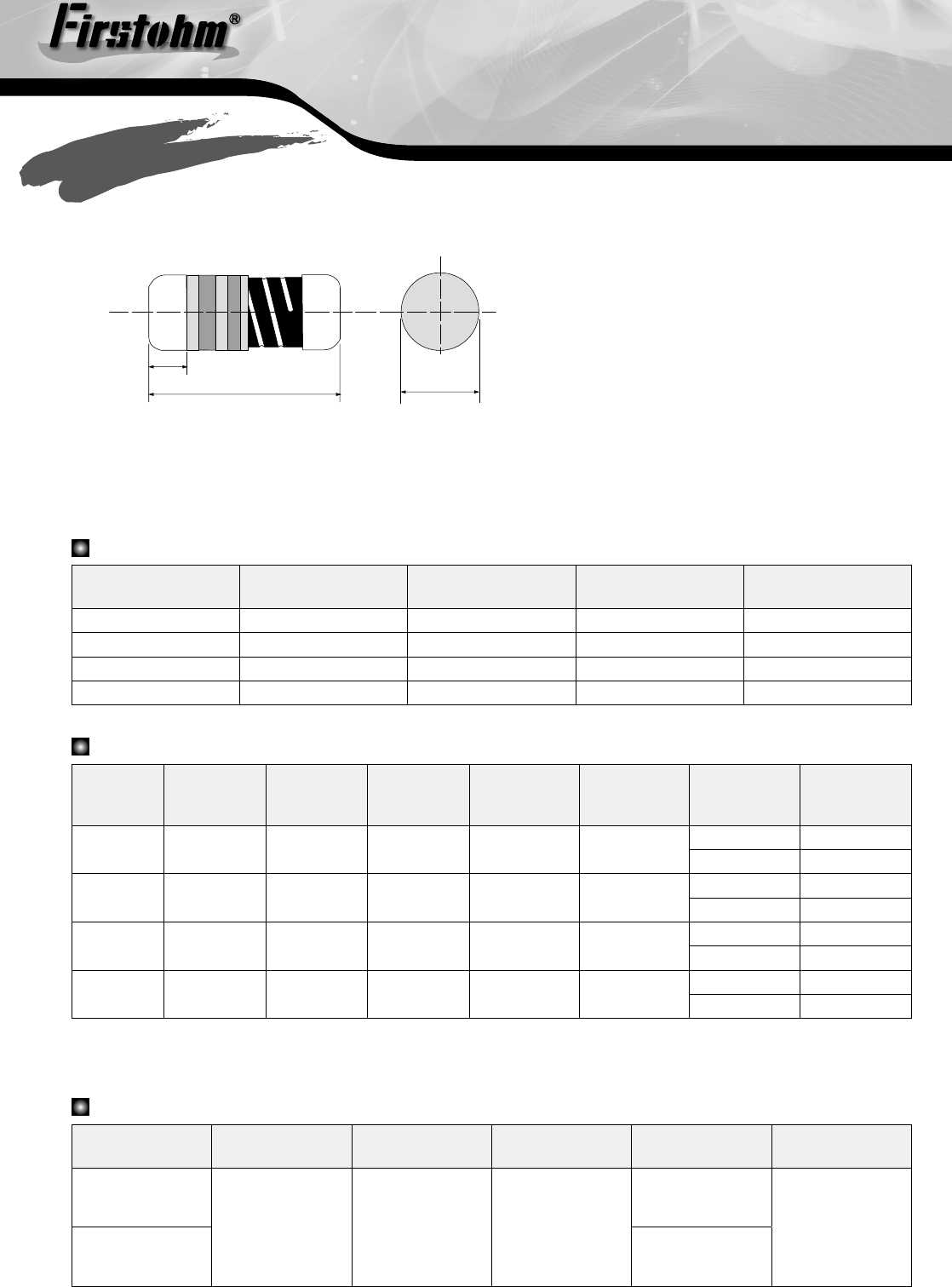

DIMENSIONS
Type
Body Length
( L, mm )
Body Diameter
( D, mm )
Soldering Spot
( B, mm )
Net Weight
Per 1000 pcs
SM16 3.52 ± 0.08 1.35 ± 0.1 0.6 Min. 17 grams
SM204 3.52 ± 0.08 1.35 ± 0.1 0.6 Min. 17 grams
SM207 5.90 ± 0.2 2.2 ± 0.1 1.0 Min. 66 grams
SM52 5.90 ± 0.2 2.2 ± 0.1 1.0 Min. 66 grams
GENERAL SPECIFICATIONS
Type
Power
Rating
( at 70°C )
Max.
Working
Voltage
Max.
Overload
Voltage
Resistance
Range
Min.
Resistance
Range
Max.
Resistance
Tolerance
Standard
Resistance
Value
SM16 1/6W 200V 400V 0.51 Ω 10M Ω
±1% E-24/E-96
±2%, 5% E-24
SM204 1/4W 200V 400V 0.51 Ω 10M Ω
±1% E-24/E-96
±2%, 5% E-24
SM207 1/3W 250V 500V 0.51 Ω 10M Ω
±1% E-24/E-96
±2%, 5% E-24
SM52 1/2W 250V 500V 0.51 Ω 10M Ω
±1% E-24/E-96
±2%, 5% E-24
For zero-ohm jumper, please see ZMM series. For 0.5Ω & under, please see CSM series. Special sizes,
values, and specifications not listed available on special order.
ORDERING INFORMATION (EXAMPLE)
Type Tolerance
Temperature
Coefficient
Resistance
Value
Packaging
Special Request
(Optional)
SM16
SM204
F (1%)
G (2%)
J (5%)
TK50
TK100
R875
84K5
1M69
TR3 (3K/reel)
TR6 (6K/reel)
TR10 (10K/reel)
HV (High value)
LV (Low value)
SM207
SM52
TR2 (2K/reel)
TR6 (6K/reel)
TR10 (10K/reel)
B
L
D
