DATA SHEET

36'' CHIMNEY PYRAMID VENTILATION HOOD

Model no:

HC6PHTX1

Product Dimensions

A Maximum height of rangehood

4 1/16''

B Minimum overall height - recirculating

29 1/8''

C Minimum overall height - ducted

26 /4''

D Overall width of rangehood

5 /8''

E Depth of rangehood chassis

19 11/16''

f Height from bottom datum to top of lower chimney section

25 1/16''

g Height of canopy

4 1/2''

h Height of control panel

2 1/16''

i Width of chimney

12 5/8''

j Depth of chimney including rear bracket

11 7/16''

k Ducting outlet diameter

6''

l Distance from center of ducting outlet to rear datum

 /4''

M Rear bracket depth

1/8''

INDICATES PRODUCT DATUM -------------------------------------------

DATE: 10.12.2015

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

(/2''). Please read the installation manual for detailed information on

installing the product. For full installation instructions & specifications visit

fisherpaykel.com

0 5 10 20

inches

35 3/8''

43 1/16''

19 11/16''

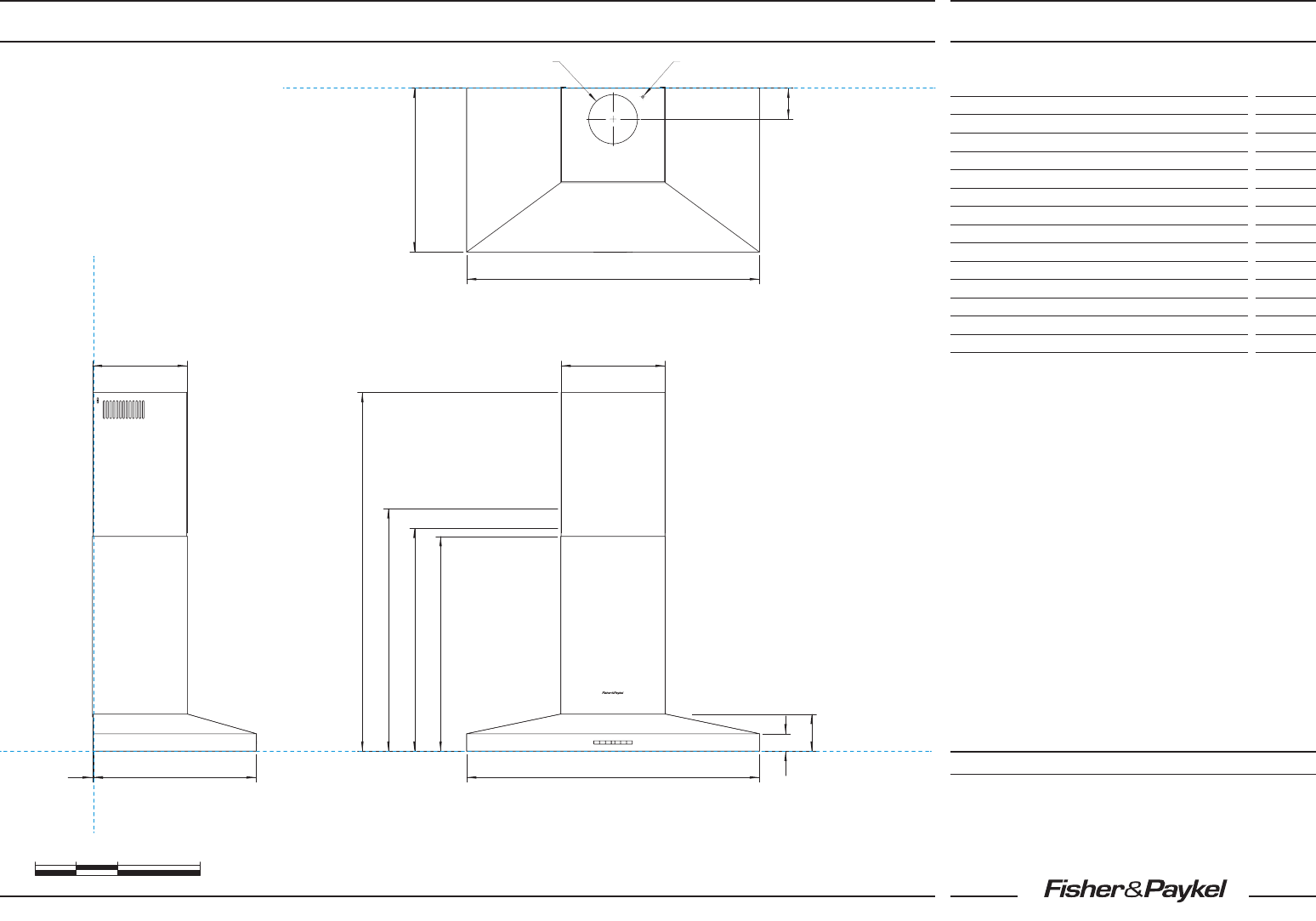

FRONT VIEW

PLAN VIEW

PROFILE VIEW

DATUM : REAR OF HOOD

DATUM : BOTTOM OF HOOD

b c f

POWER CORD

LOCATION

19 11/16''
