Data Sheet Trim Kit

24" MICROWAVE OVEN WITH TRIM KIT
Model no:
CMO24SS2 with CMOTTKFP
(refer page 2 for metric measurements)
Product Dimensions
in
a Overall height of trim kit
20 1/2
''
B Overall width of trim kit
29 11/16
''
C Overall depth of trim kit
20 3/8
''
d Depth of surround
1 1/2
''
e Depth of trim kit venting inside cabinet
18 7/8
''
f Width of trim kit venting inside cabinet
23 1/4
''
g Height of surround horizontals
3
''
h Width of surround verticals - front faces
1 3/8
''
i Width of surround opening
25 1/4
''
j Height of surround opening
14 5/16
''
k Height from top of surround to top of trim kit venting inside
cabinet
1
''
l Height from bottom of surround to bottom of cavity
5/16
''
Minimum Clearances
in
Minimum inside height of cavity
19 3/16
''
Minimum inside width of cavity
25 3/4
''
Minimum inside depth of cavity from front datum
min 20
''
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CLEARANCES ------------------------------------------------
DATE: 17.08.2015
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(3/32''
). Please read the installation manual for detailed information on
installing the product. www.fisherpaykel.com
DATA SHEET
0 5 10 20
inches
DATUM :
BOTTOM OF PRODUCT
DATUM : FRONT OF CABINETRY
DATUM : FRONT OF CABINETRY
29 11/16''
B
A

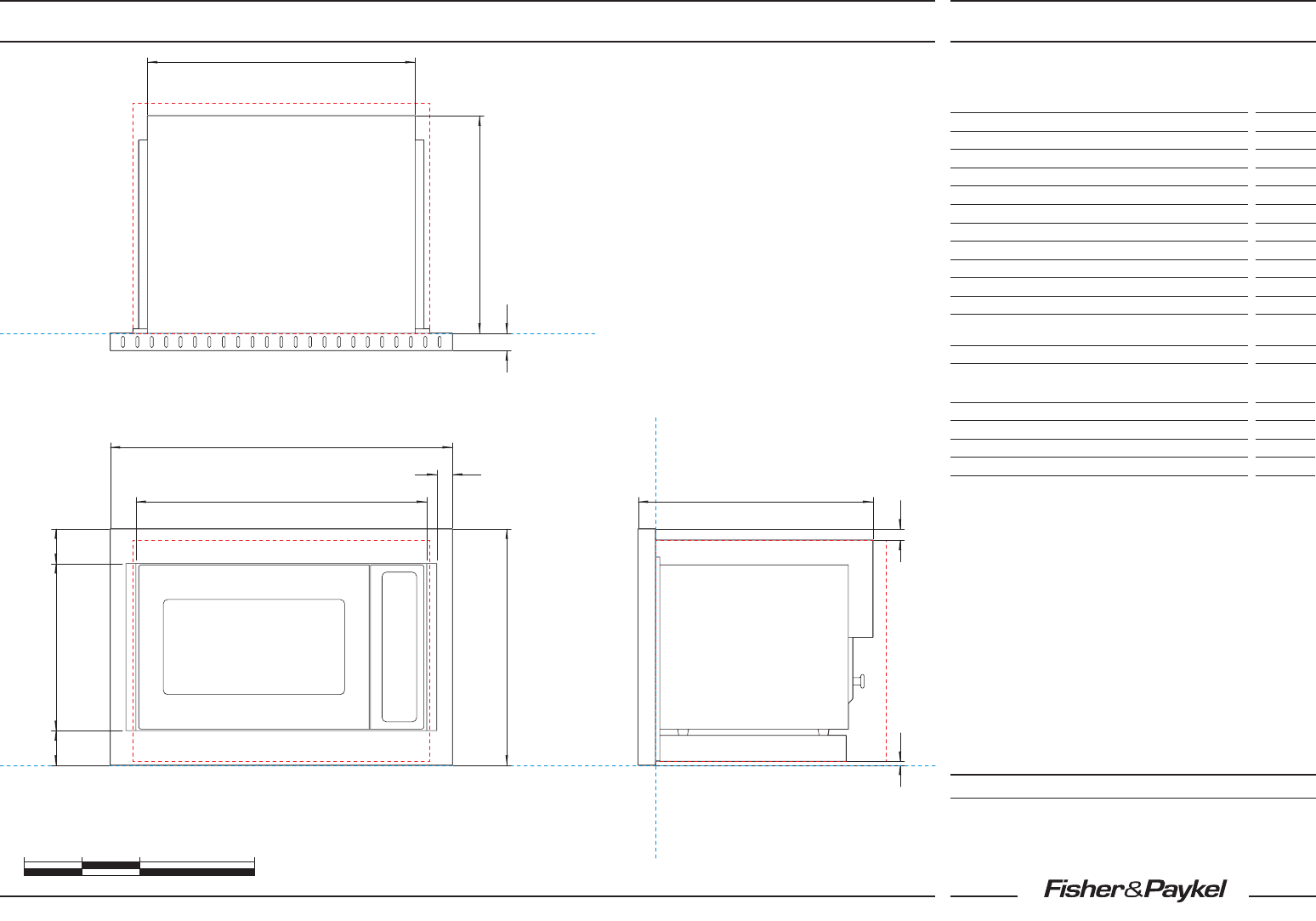

FRONT VIEW
PLAN VIEW
PROFILE VIEW
e
c
j
g
g
h
k
l
i
20 1/2''
20 3/8''
d
f
