Data Sheet Vacuum Seal Drawer

Model no:
VB24SDEB1
(refer page 2 for metric measurements)
Product Dimensions
in
a Overall height of vacuum drawer
5 1/2"
B Overall width of vacuum drawer
2 7/16"
c Overall depth of drawer (includes front panel & power plug)
22 1/4"
D Height of drawer front panel
5 /8"
e Width of chassis (includes side brackets)
21 7/8"
f Depth of drawer front panel and flange
1/16"
g Depth of chassis (includes power plug, excludes flange)
21 7/16"
H Distance from side bracket to side of drawer front
1/16"
I Distance between flange and side bracket
14 1/16"
J Depth of open drawer (measured from front of drawer panel)
16 5/16"
k Height from bottom of chassis to bottom of front panel
1/16"
Clearance Dimensions
in
Minimum inside height of cavity
5 9/16"
Minimum inside width of cavity
22 1/16"
Minimum inside depth of cavity
21 5/8"
Overall width of cabinetry
2 5/8"
Minimum clearance between top of front panel
and upper cabinetry panel
1/8"
Minimum clearance between bottom of front panel
and lower cabinetry panel
1/16"
DATA SHEET
Vacuum Seal Drawer, 24" - Minimal style
0 100 200 400
inches
DATUM : BOTTOM OF PRODUCT
A
DATUM : FRONT OF CHASSIS
DATUM : FRONT OF CHASSIS

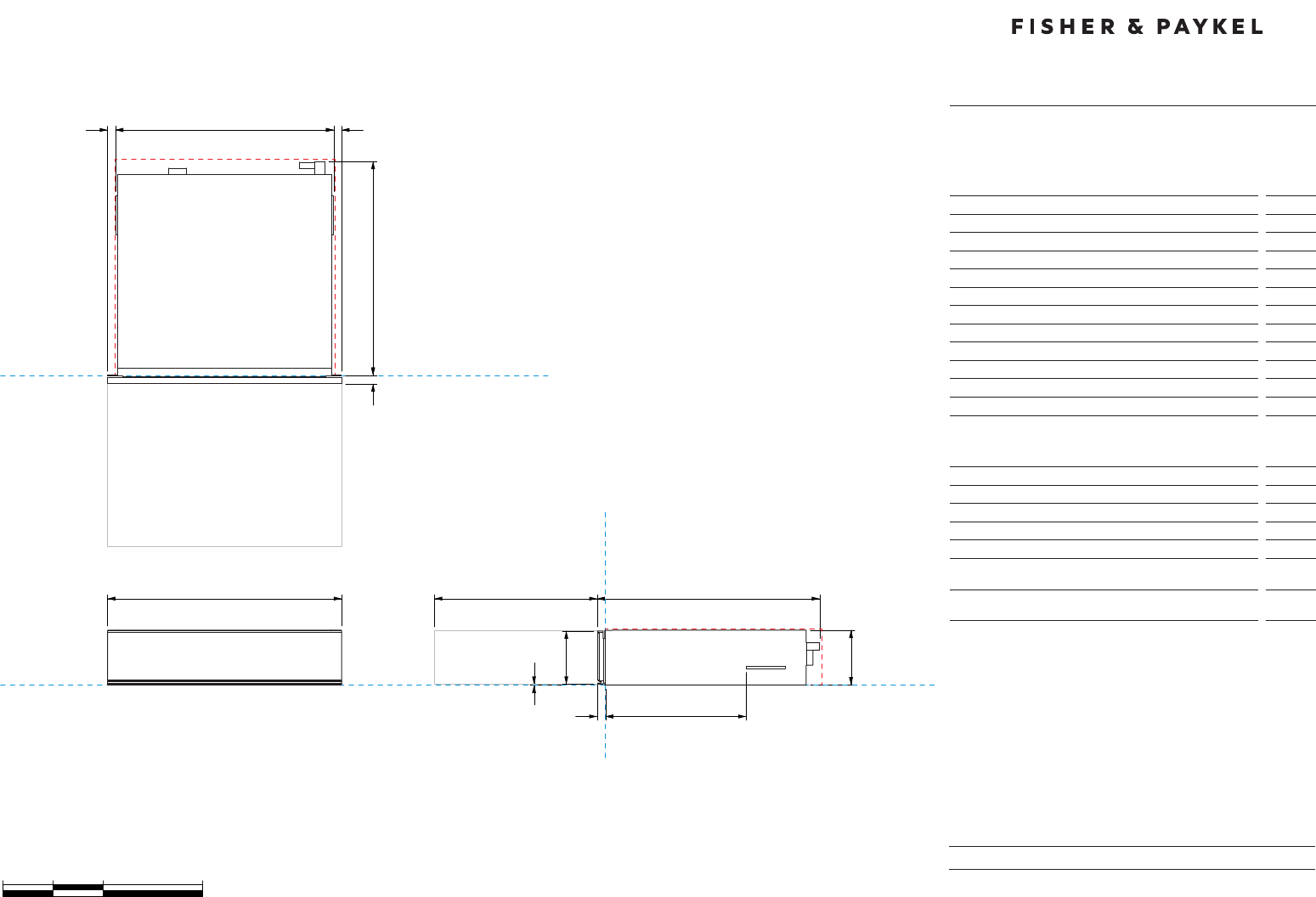

FRONT VIEW
PLAN VIEW
PROFILE VIEW
f
C
e HH
I
J
d
g
f
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
DATE: 07.04.2021
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com
5 1/2"
23 7/16"
B
22 1/4"
K
