Data Sheet

The FLIR Flexible Clamp Meters with Bluetooth

are ergonomic tools

designed to simplify difcult current measurements. Made with a narrow

exible coil clamp, the CM55 and CM57 let you easily take measurements

in tight or awkward spots— a difcult task with a traditional hard jaw clamp

meter. With Bluetooth communication for remote viewing and data transfer

to iOS

and Android

™

devices via the FLIR Tools Mobile App, you can

analyze and share data fast right from the jobsite.

TAKE ACCURATE MEASUREMENTS

IN TIGHT OR AWKWARD SPOTS.

Tricky conductors conquered

• Snake the coil around obstacles with ease, even in

deep, crowded cabinets

• True RMS AC Current up to 3,000 Amps for

multiple conductor measurements

• Inrush current function for equipment start-up spikes

EASY INSPECTION AND NAVIGATION.

Designed with your convenience in mind

• Standalone exible clamp meter displays the readings you need

• Bright, dual LED worklights provide built-in illumination for dark cabinets

• Drop tested to 3 meters, portable, lightweight, and tangle-free without

compromising measurement range

REMOTE VIEWING FROM A SAFE DISTANCE.

Transfer & view data on mobile devices with FLIR Tools Mobile App

• Connect to iOS and Android smartphones or tablets

• Multiple units wirelessly connect for remote viewing

of multiphase systems

• Data recording for trend analysis transferable via Bluetooth

CHOOSE FROM TWO FLEXIBLE COIL LENGTHS:

• CM55 - 10" (25.4cm) for easy maneuverability and compact convenience

• CM57 - 18" (45.72 cm) for larger and multiple conductor measurements,

double-wrap requirements, and deeper access

www.ﬂir.com/cm55-cm57

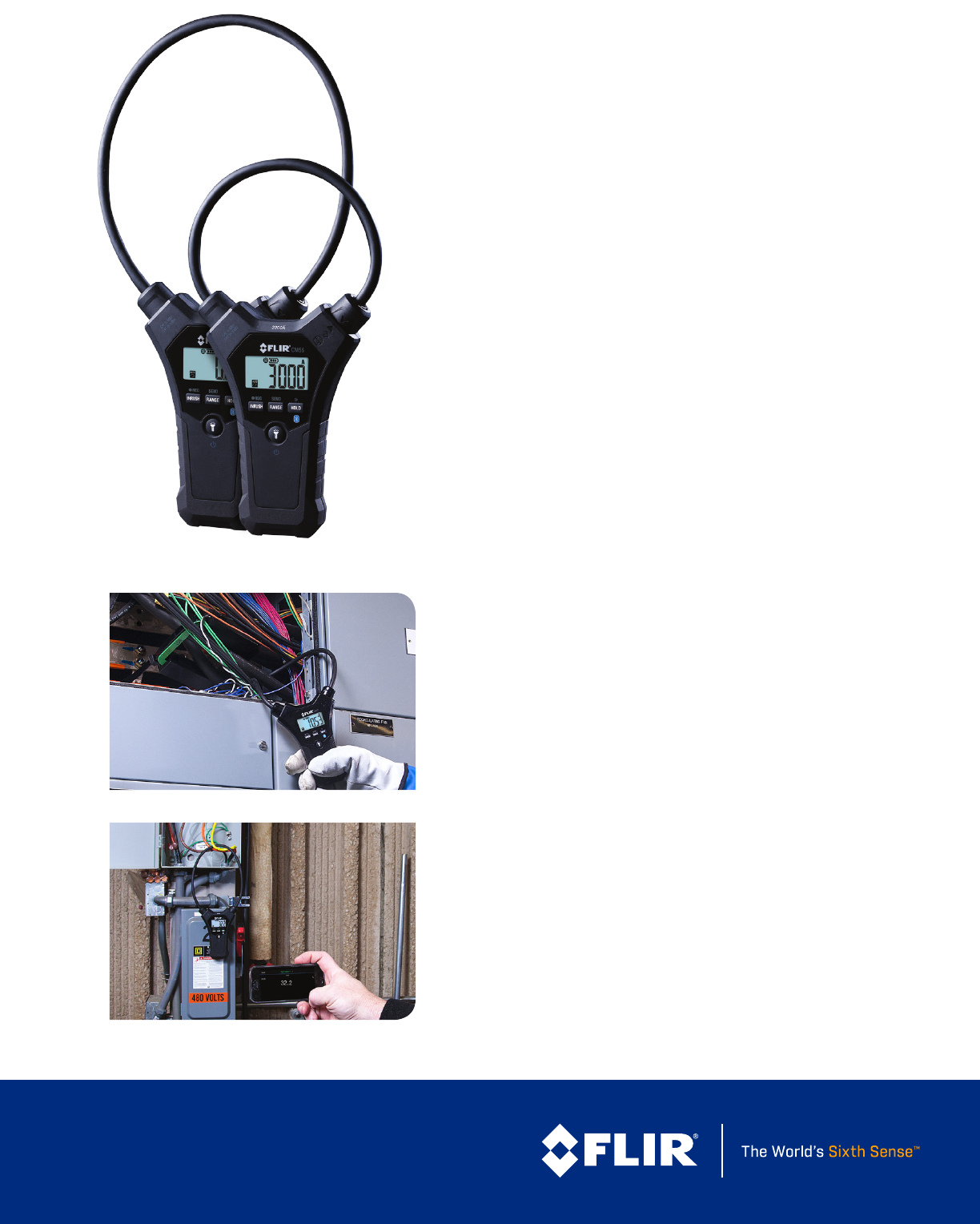

FLIR CM57’s Flexible Cable works into tight areas

Bluetooth capability gives readings at safe distances

FLIR CM55/57

Flexible Clamp Meters

CM57 & CM55 Flexible Clamp Meters

PAGE 1
FLIR CM55/57 Flexible Clamp Meters The FLIR Flexible Clamp Meters with Bluetooth ® are ergonomic tools designed to simplify difficult current measurements. Made with a narrow flexible coil clamp, the CM55 and CM57 let you easily take measurements in tight or awkward spots— a difficult task with a traditional hard jaw clamp meter.
PAGE 2
Specifications Flexible Clamp Meters CM55 CM57 Maximum AC current Flex Coil 3000A AC response True RMS AC current ranges and resolution 30.00A, 300.0A, 3000A Basic AC current accuracy (of reading) ± 3.0% + 5 digits Maximum resolution 0.01A AC current bandwidth 45Hz – 500Hz (sine wave) Inrush current Min 0.5A, 100mS Data record mode 20,000 points , 1 min sample rate 0.6" (15mm) ± 2.0% 1.0" (25mm) ± 2.5% 1.4" (35mm) ± 3.
