Technical Data

What is Full Disclosure Technology?

Full Disclosure Technology is built into all Fluke and

RPM three-phase power quality instruments. This

technology makes the Multipoint Power Recorder a

unique, professional instrument that increases your

ability to maintain and troubleshoot your plant’s

power quality.

ull Disclosure Technology uses patented sam-

pling hardware and algorithms to record everything

your loads see.

•

The sampling system processes every cycle on

all channels, recording min/max values and

looking for sags, swells or waveform faults.

•

The system can store 6000 events (up to 96,000

with Multi-session option). You can see every-

thing from sub-cycle events to long-term outages

with clear detail.

•

Records power parameters, rms voltage, rms

current, harmonics

and monitors for power

quality events — on all channels simultaneously

without having to reconfigure.

•

No need to set thresholds. You won’t be

disappointed by missed events or a memory

full of noise.

•

Because there are no thresholds to set, Full

Disclosure Technology system records any

changes in measurements, even the ones that

are

almost out of tolerance.

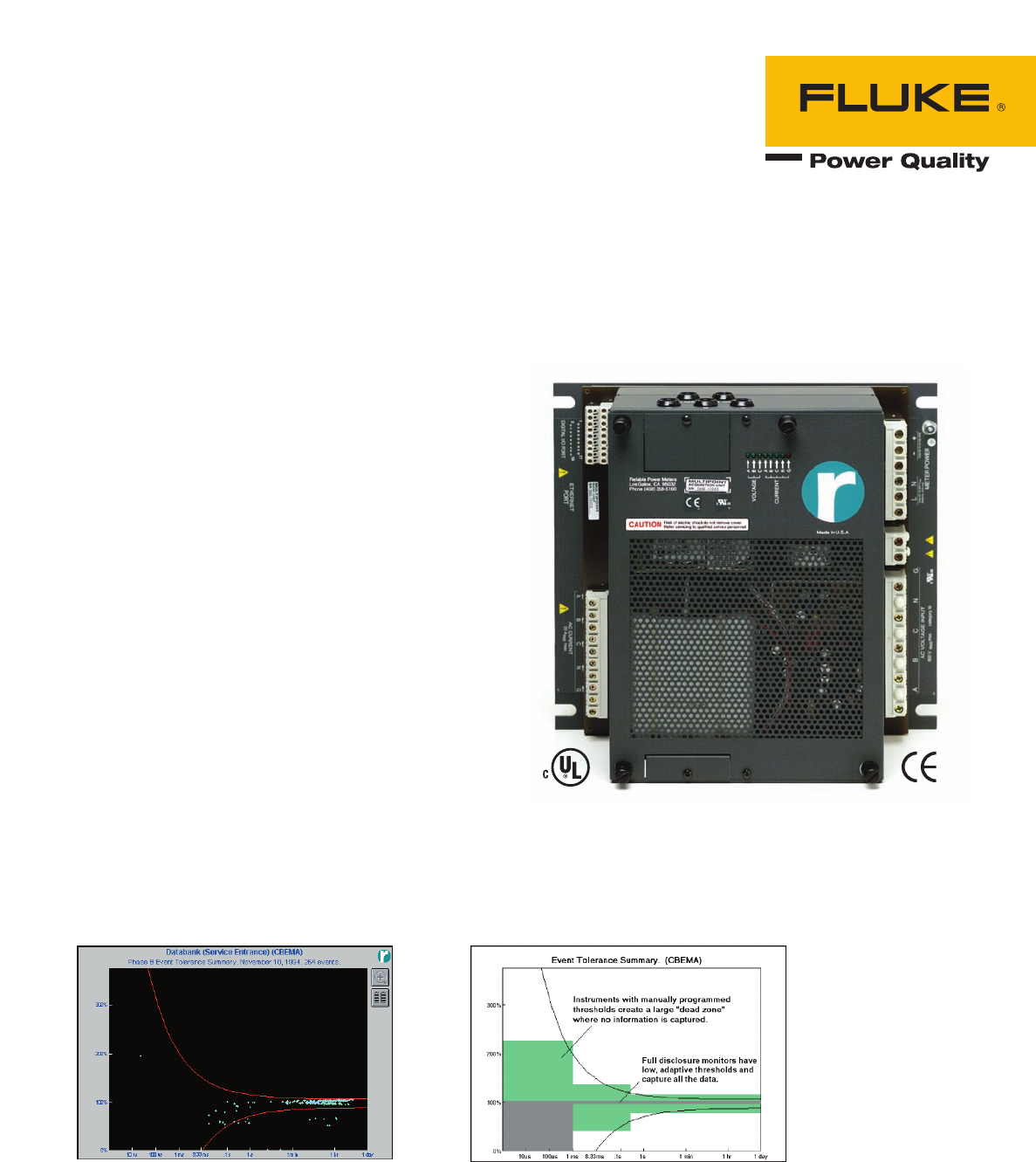

Reliable Power Meters

Multipoint Power Recorder

High-speed capability for

permanent installation

ull Disclosure T

echnolog

y captures thousands of voltage

events and related current information, without having to

set thresholds.

ull Disclosure T

echnolog

y lets you plot events on any

power tolerance curve. CBEMA, ITIC, and ANSI curves

are included, or create your own.
